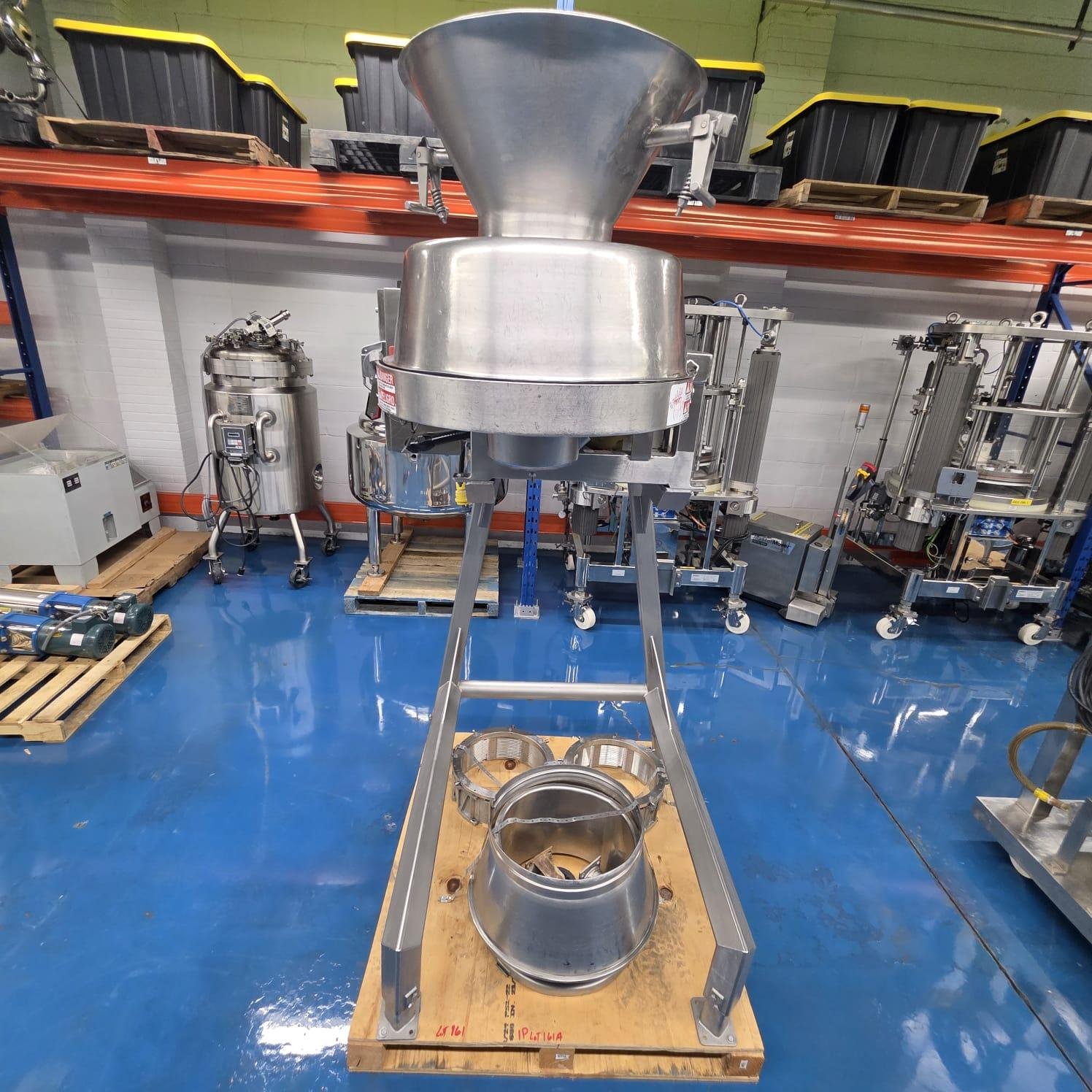

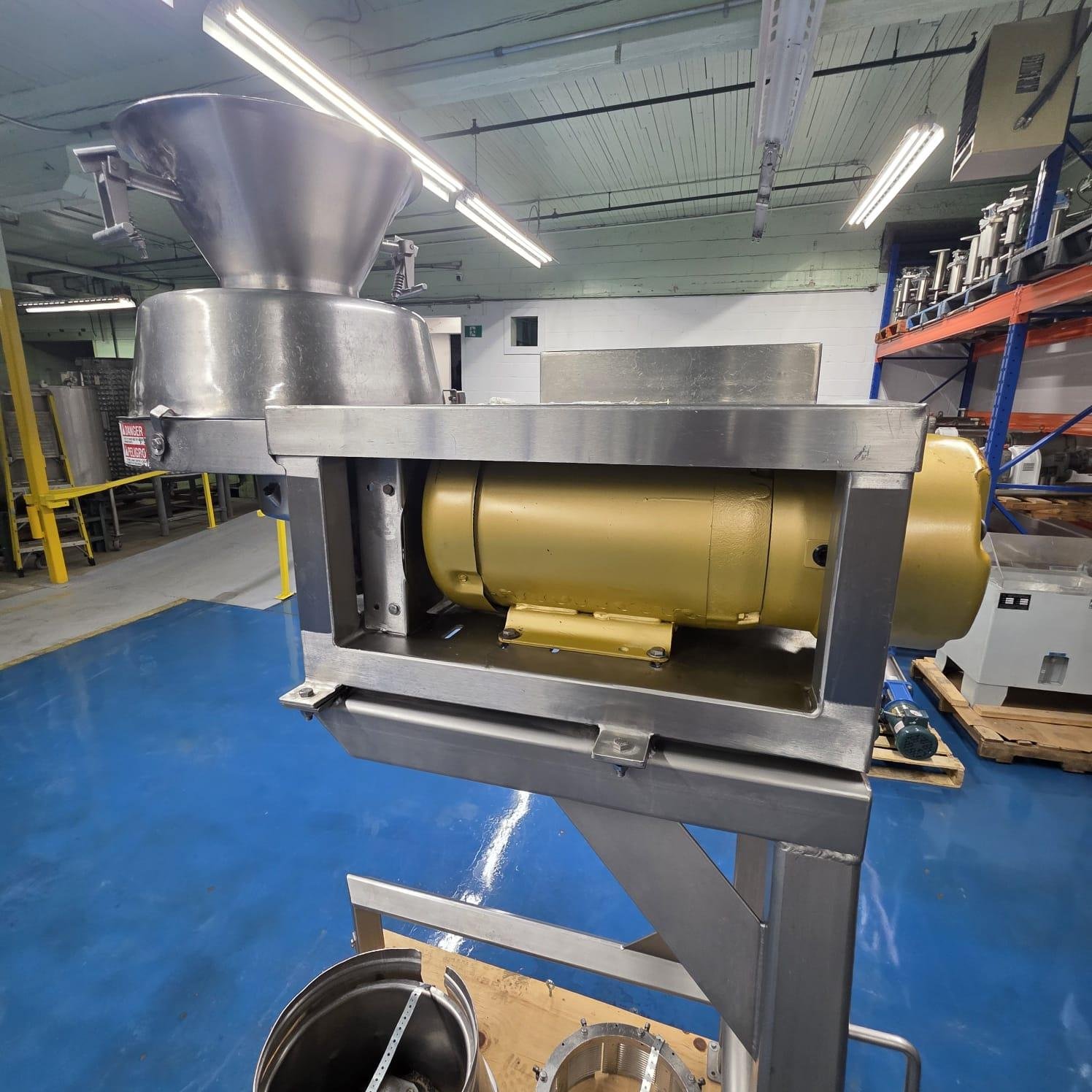

Urschel Model CC-D Shredder Versatile Slicer/Shredder/Strip Cutter

 Model CC-D to shred, slice, strip cut, or granulate a variety

of products including cheese, coconut, cranberries, potatoes, other fruits/vegetables,

cooked meats, surimi, and pet food. All in stainless steel, the machine

features continuous operation for uninterrupted production, and is designed for easy

clean-up and maintenance. The Model CC-D will accept products measuring up to

3-1/2" (88.9 mm) in any dimension.

FULL & REDUCED FLAT-V® SHREDS

Full Flat-V Shred: Hexagonal-shaped cross section approximately .150" (3.8 mm) on all sides. Reduced Flat-V Shred: Flattened top and bottom that form a corrugated shred.

FULL SHREDS & REDUCED V SHREDS

Full Shred: Diamond-shaped cross section available in four thicknesses: .070, .097,

.125, or *.285" (1.8, 2.5, 3.2, or *7.2 mm).

Reduced V Shred: “V”-shaped cross section

OVAL & REDUCED OVAL (CRESCENT) SHREDS

.250" Oval Shred: Oval-shaped cross section approximately .125" (3.2 mm) thick by .250"

(6.4 mm) wide.

.480" Wide Oval Shred: .152" (3.7 mm)

thick by .480" (12.2 mm) wide.

Crescent Shred: Crescent-shaped cross section. Wide Crescent Shred: Wide crescent-shaped cross section.

*FLAT-V® SLICES

Slice thickness up to .180" (4.6 mm) with

2.1 corrugations per inch. Corrugation depth of .125" (3.2 mm); Centers: .473" (12 mm).

**Z-CUT SLICES

Slice thickness up to .325" (8.3 mm) with

2.1 corrugations per inch. Corrugation depth of .135" (3.4 mm); Centers: .394" (10 mm).

V SLICES

Slice thickness up to .500" (12.7 mm)

.125" Slice: 8 “V’s” per inch. “V” depth of

.050" (1.3 mm); Centers: .125" (3.2 mm).

.212" Slice: 4.7 “V’s” per inch. “V” depth of .084" (2.1 mm); Centers: .212" (5.4 mm).

CRINKLE SLICES

Slice thickness up to .500" (12.7 mm) with 3-1/2 waves per inch.

.175" Slice: Crinkle Depth .084" (2.1 mm),

Centers .175" (4.4 mm),

.300" Slice: Crinkle Depth .080" (2.0 mm),

Centers .300" (7.6 mm).

.480" Slice: Crinkle Depth .076" (1.9 mm),

Centers .480" (12.2 mm).

FLAT SLICES                                                                 8

Slice thickness up to .500" (12.7 mm)

STRIP CUTS

Rectangular cross section.

Width: 3/32, 1/8, 3/16, 1/4, 3/8, 1/2, 9/16, or 3/4" (2.4, 3.2, 4.8, 6.4, 9.5,

12.7, 14.3, or 19 mm)

GRATING OPTIONS

Grating heads offer cuts including powdered parmesan, coarse granules,

and a variety of shreds.

https://www.urschel.com/wp-content/uploads/2024/02/fact-sheet-model-cc-d-english.pdf
