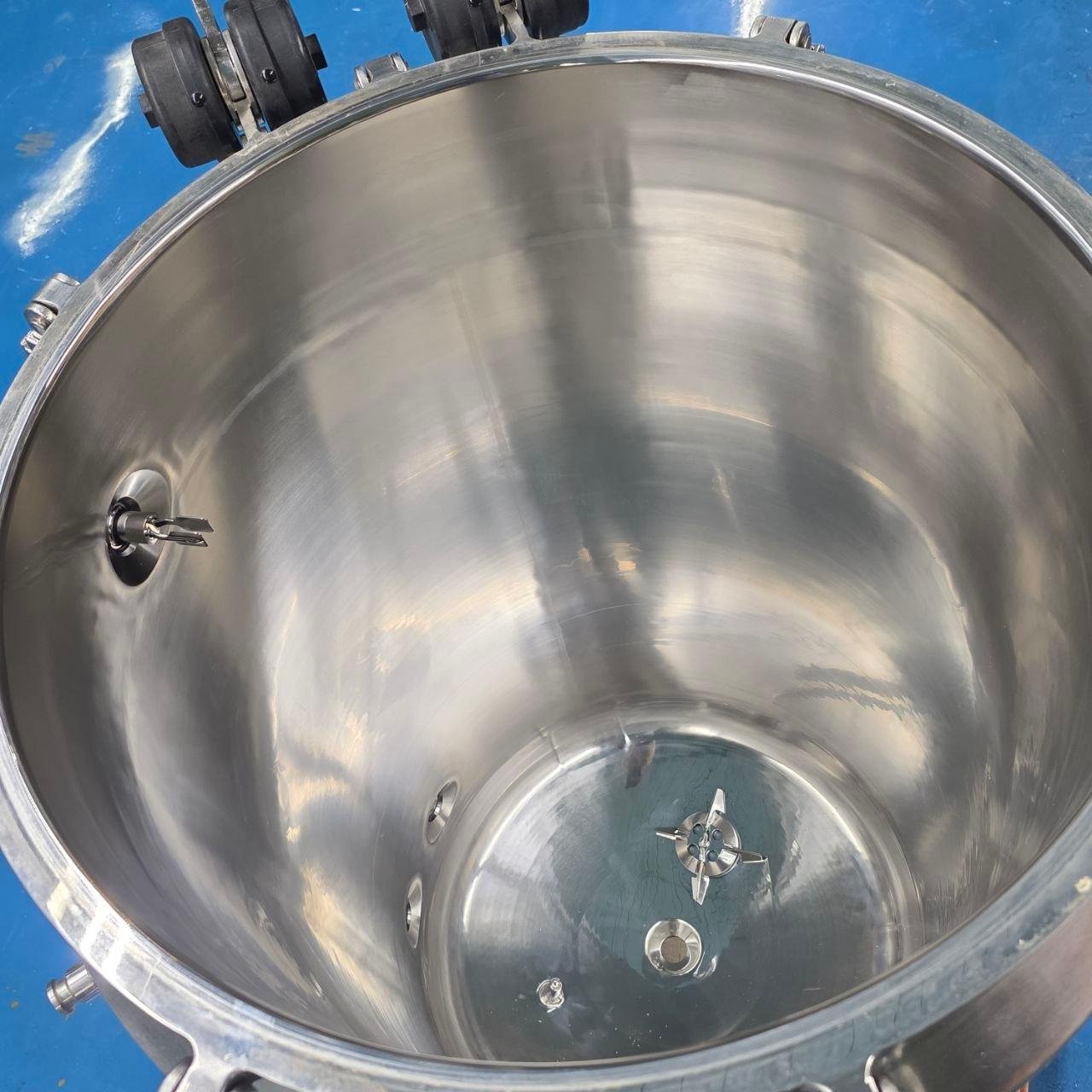

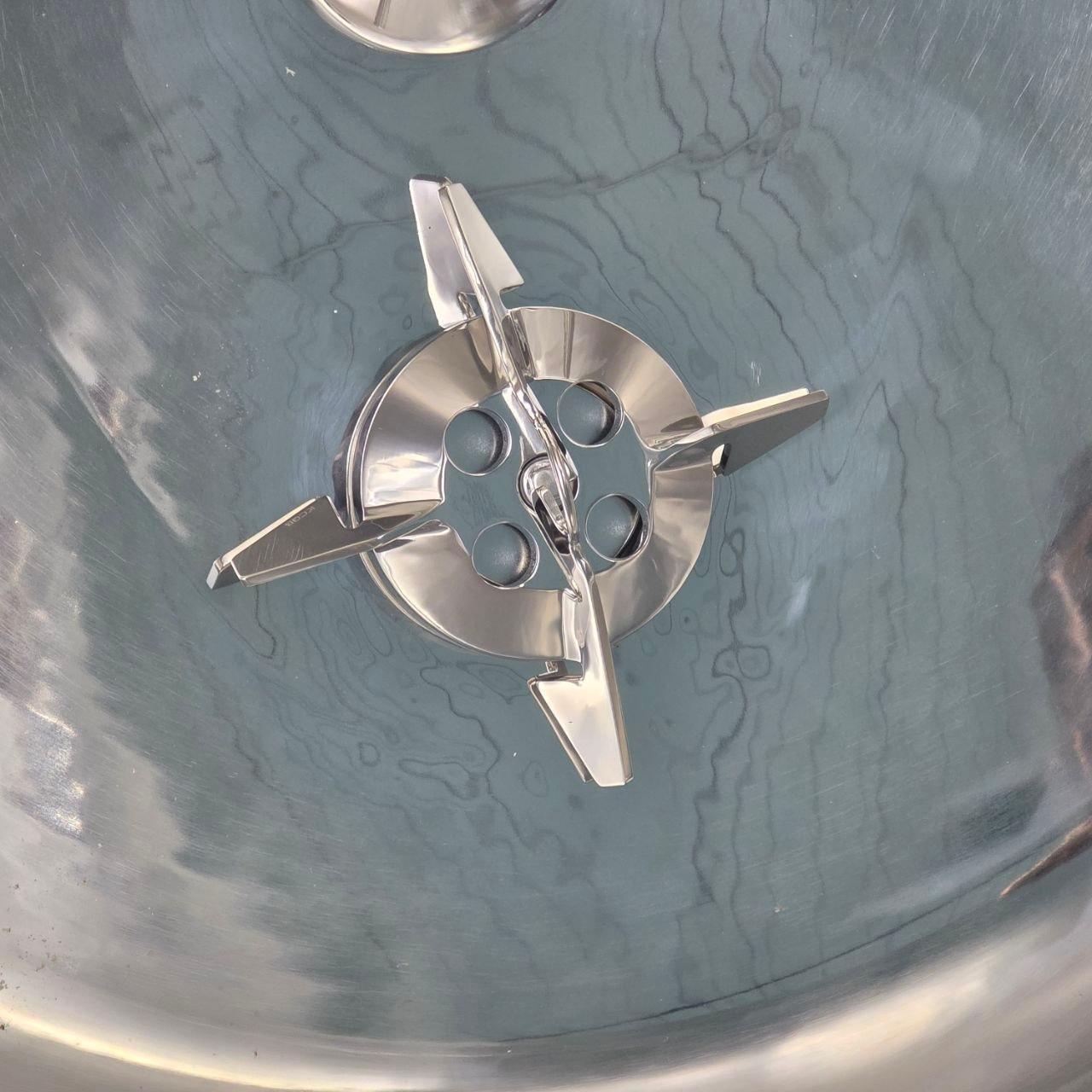

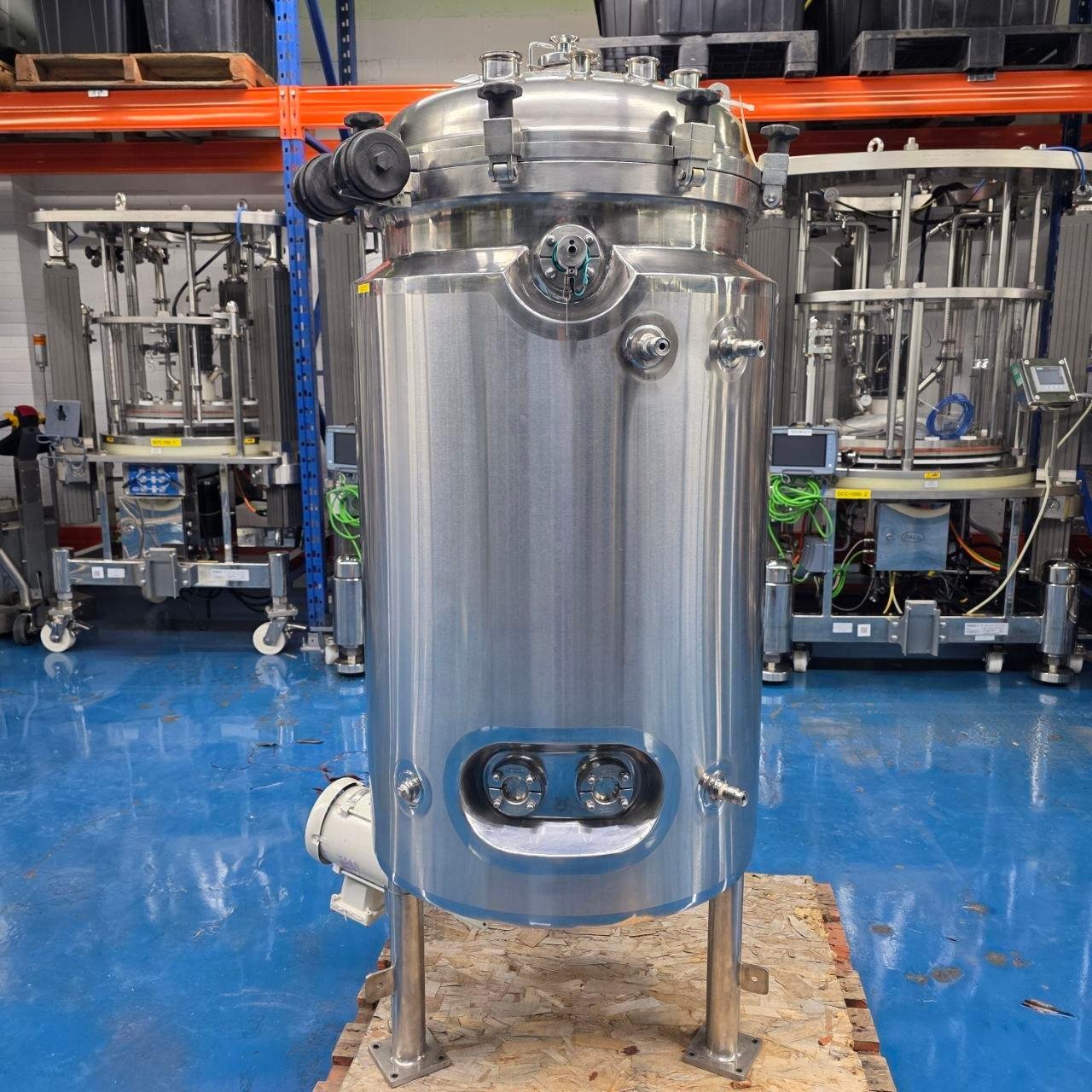

Biotech Reactor / Mixing Pressure Processing Vessel / Tank INOX Inds. 200 Liters 316 S/S With Bottom Mixer  (commonly used in pharmaceutical, biotech, cosmetic, and food processing industries).

​

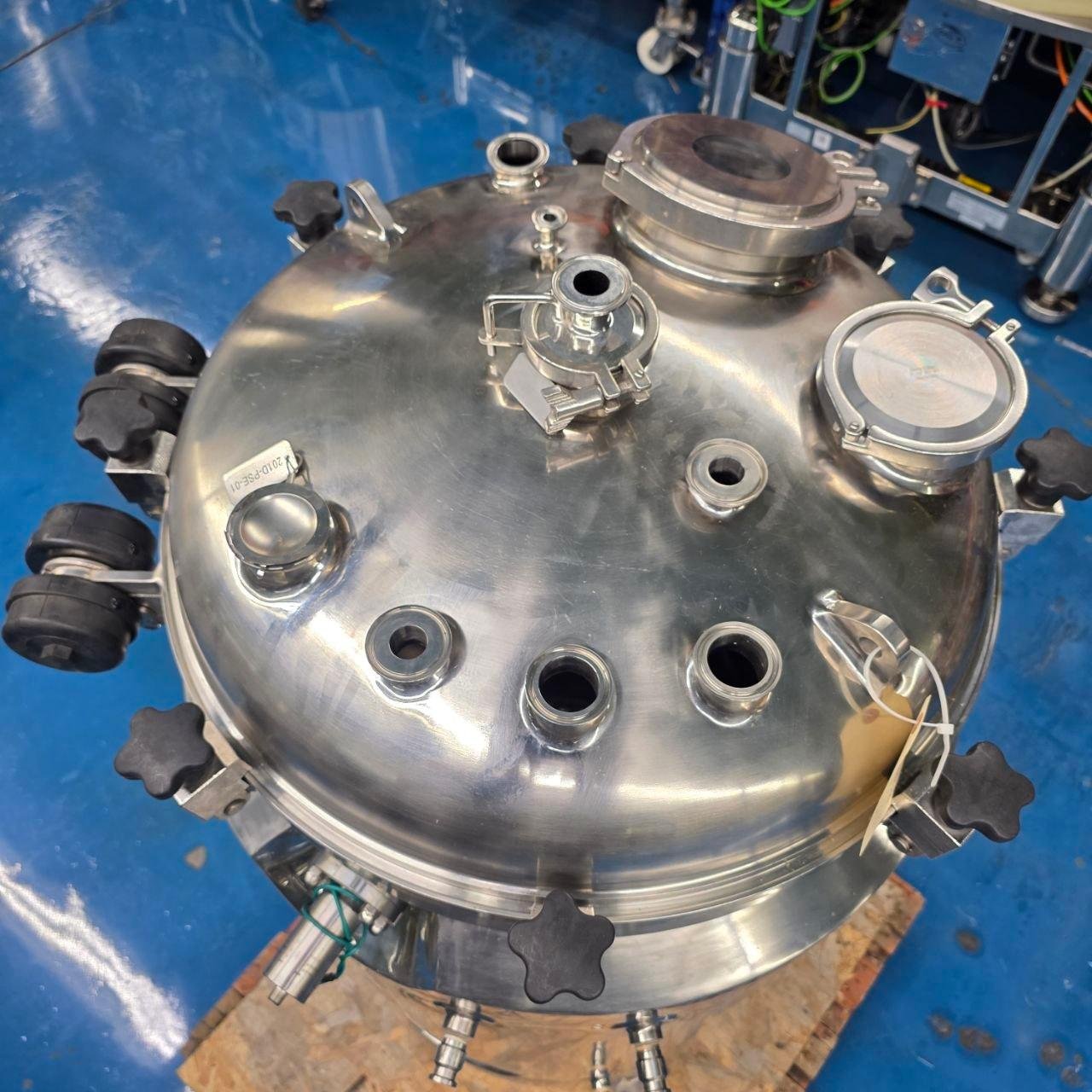

​Closure Head with Swing Bolts: Designed to safely seal the vessel for processes operating under pressure or vacuum.

​Sight Glasses: Located on lower sections with integrated ports, allowing operators to visually monitor liquid levels, mixing, and reactions inside the tank.

​Sanitary Tri-Clamp Connections: Ports arranged around the vessel body for ingredient addition, sampling, temperature/pressure sensors, and CIP (Clean-In-Place) systems.

​Jacketed Construction: The heavy-gauge cylindrical body is jacketed to circulate thermal fluid (steam, chilled water, or glycol) for precise temperature control.

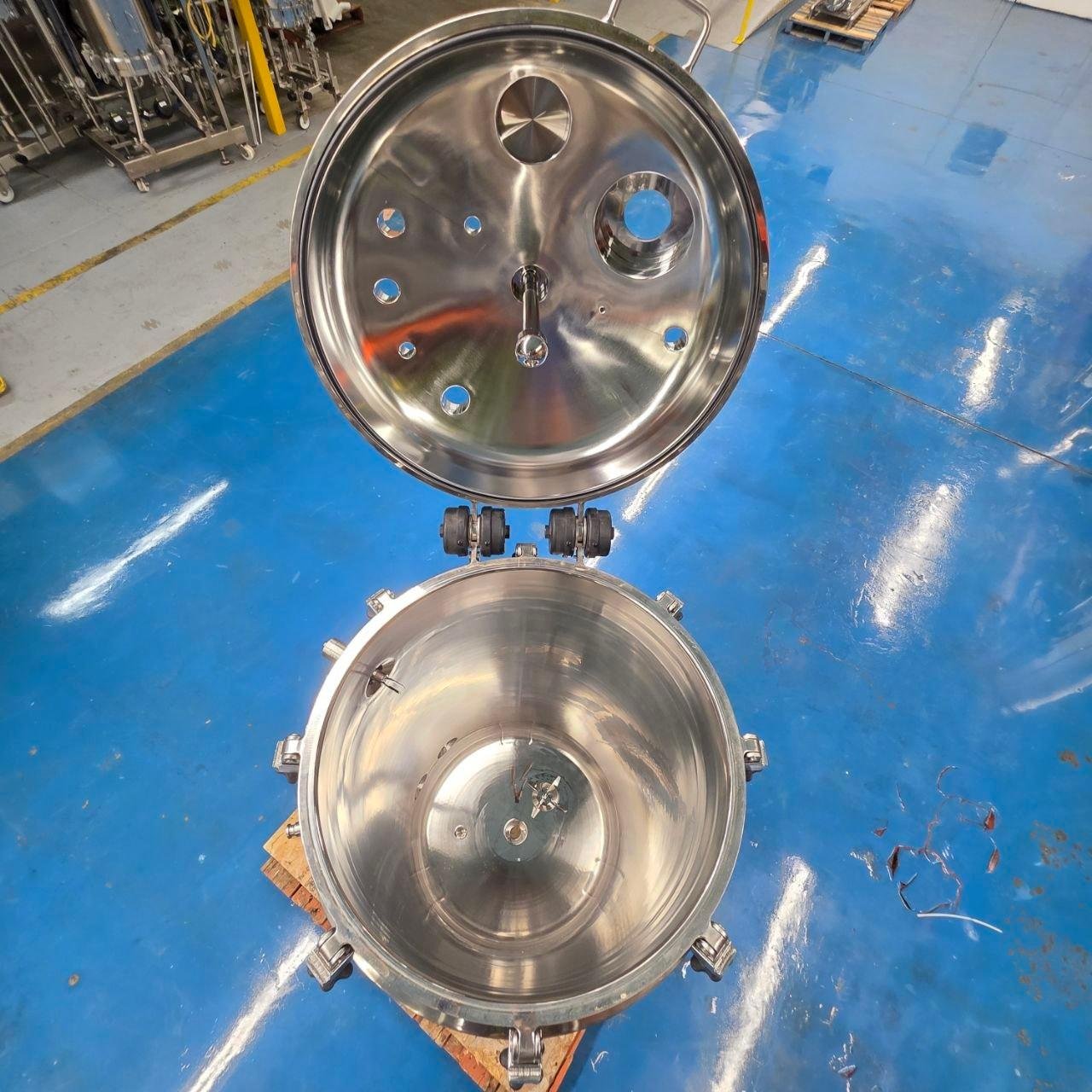

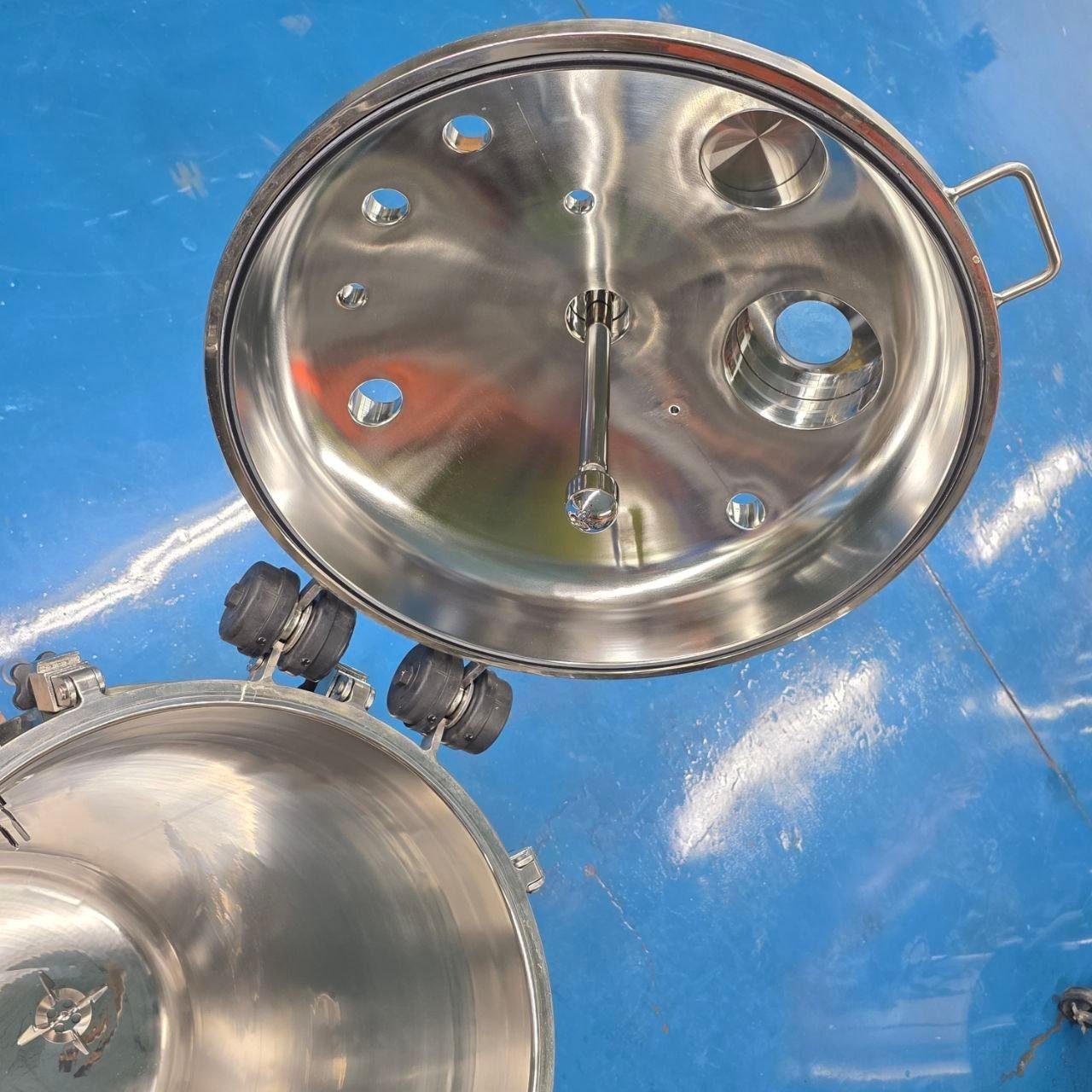

​Top Cover Lift Mechanism: Features a counterweighted or assisted hinge assembly to easily and safely lift the heavy top lid.

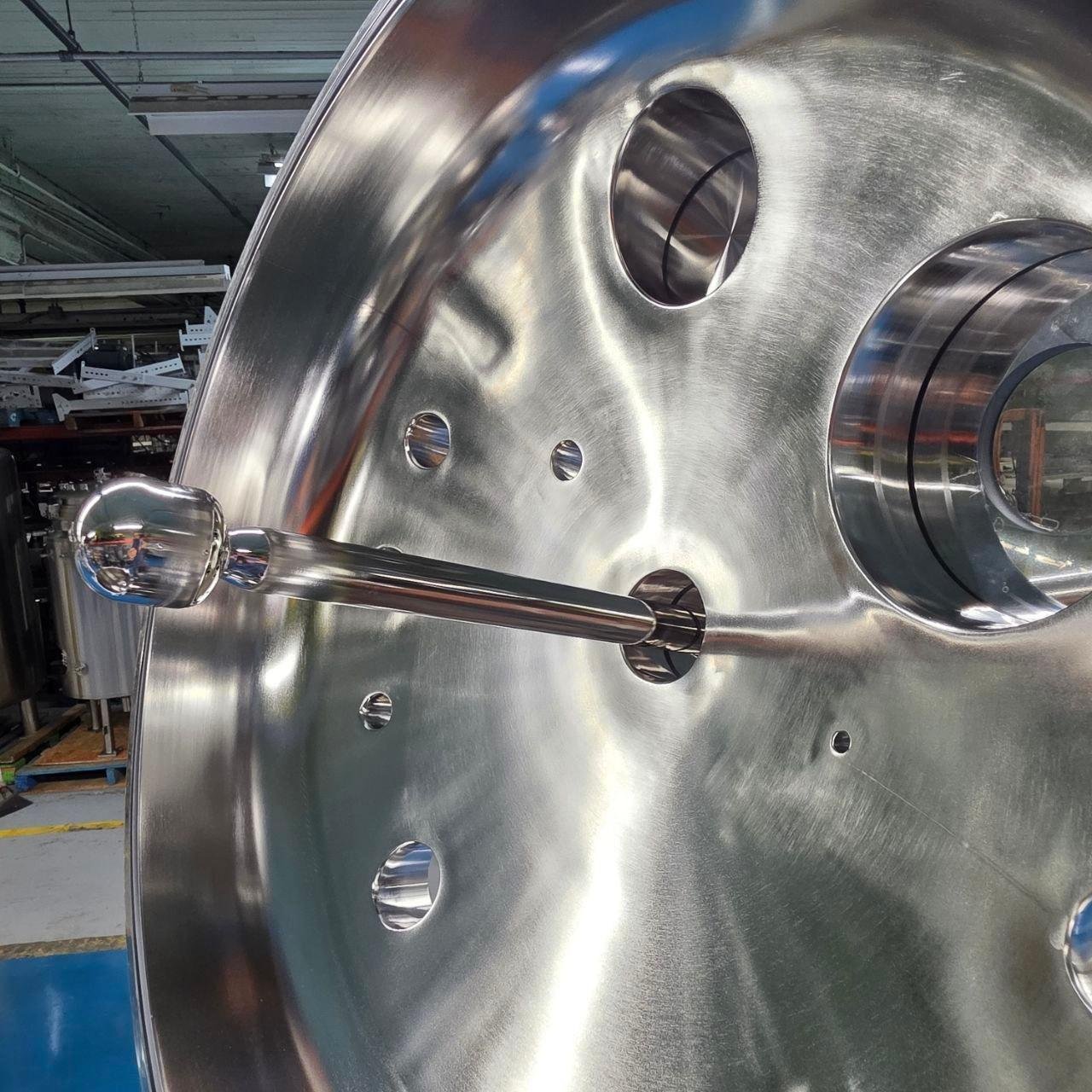

Spray Ball on The cover Mirror Finished.



Technical Data:

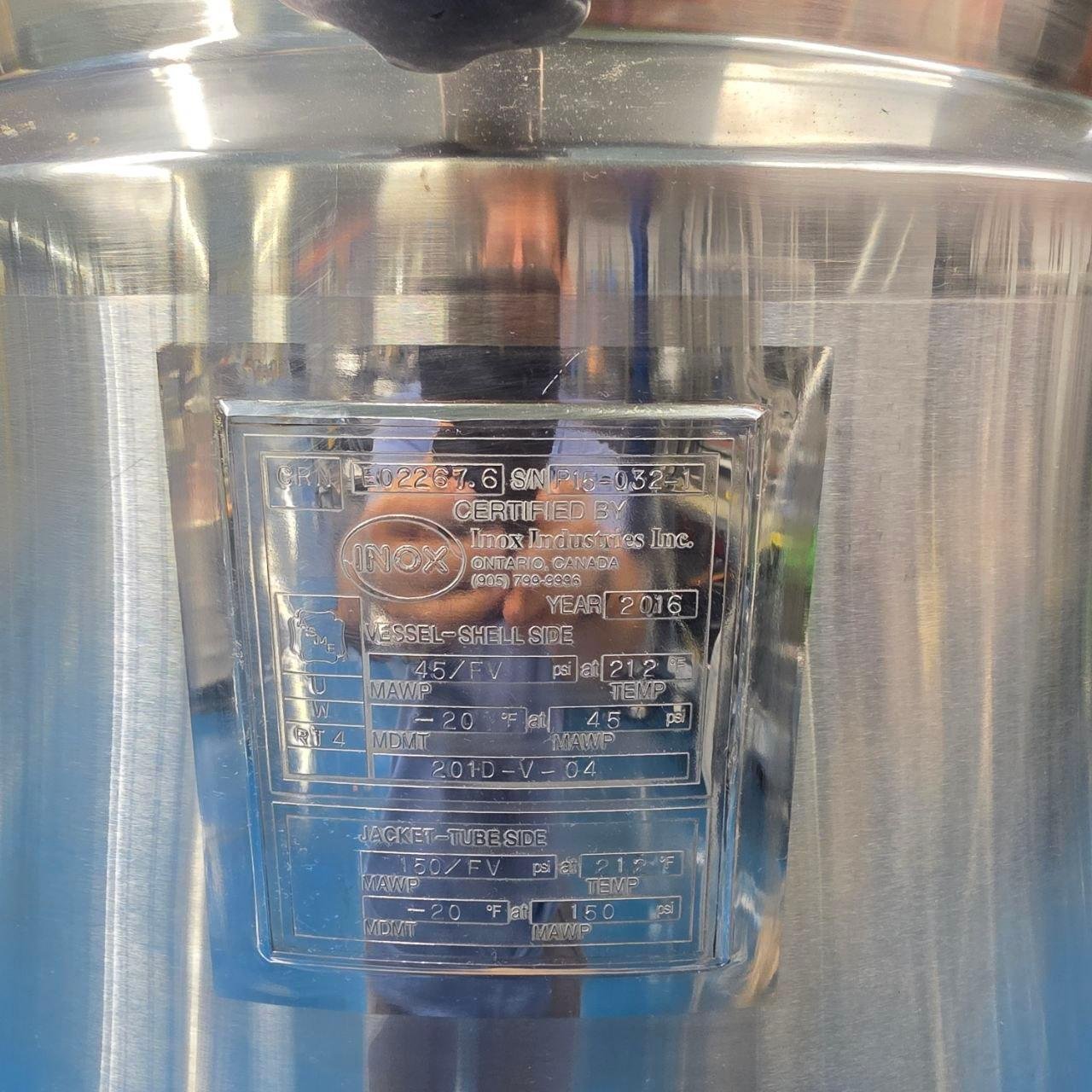

ASME/CRN technical nameplate

​​Manufacturer: Inox Industries Inc. (Ontario, Canada)

​Year Built: 2016

​Serial Number (S/N): P15-032-1

​Canadian Registration Number (CRN): E02267.6

​Drawing/Design Number: 2010-V-04

​Certification Code: Stamped with the ASME symbol (U / W / RT4), certifying compliance with pressure vessel standards.

​Technical Operating Specifications:

​Vessel - Shell Side (Internal Tank):

​MAWP (Maximum Allowable Working Pressure): 45 psi / FV (Full Vacuum) at 212 °F (100 °C)

​MDMT (Minimum Design Metal Temperature): -20 °F (-28.8 °C) at 45 psi

​Jacket - Tube Side (Heating/Cooling Jacket):

​MAWP (Maximum Allowable Working Pressure): 150 psi / FV (Full Vacuum) at 212 °F (100 °C)

​MDMT (Minimum Design Metal Temperature): -20 °F (-28.8 °C) at 150 psi

Electrical Data:

Bottom Mixer Motor 220 volts 60 hz 3 ph.
