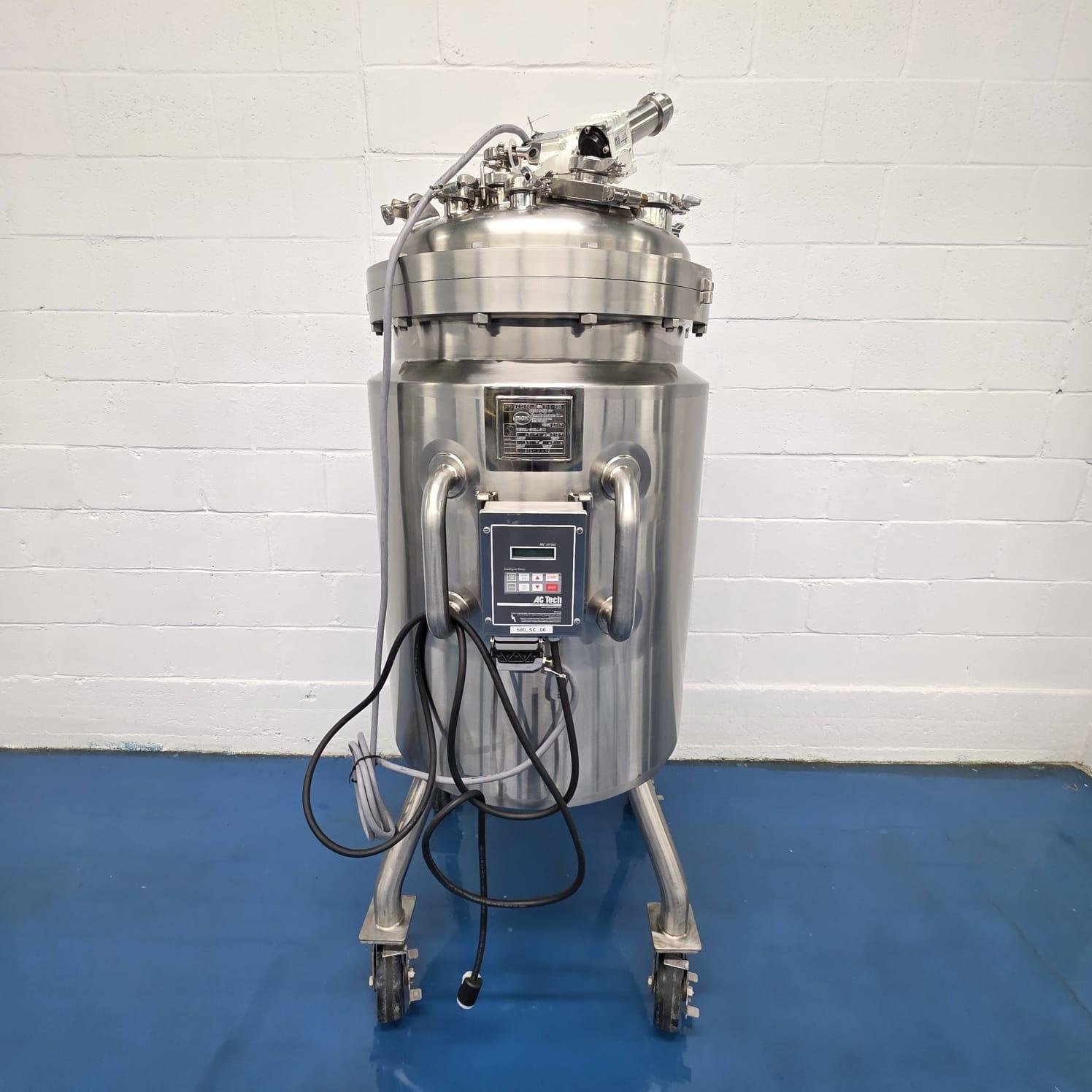

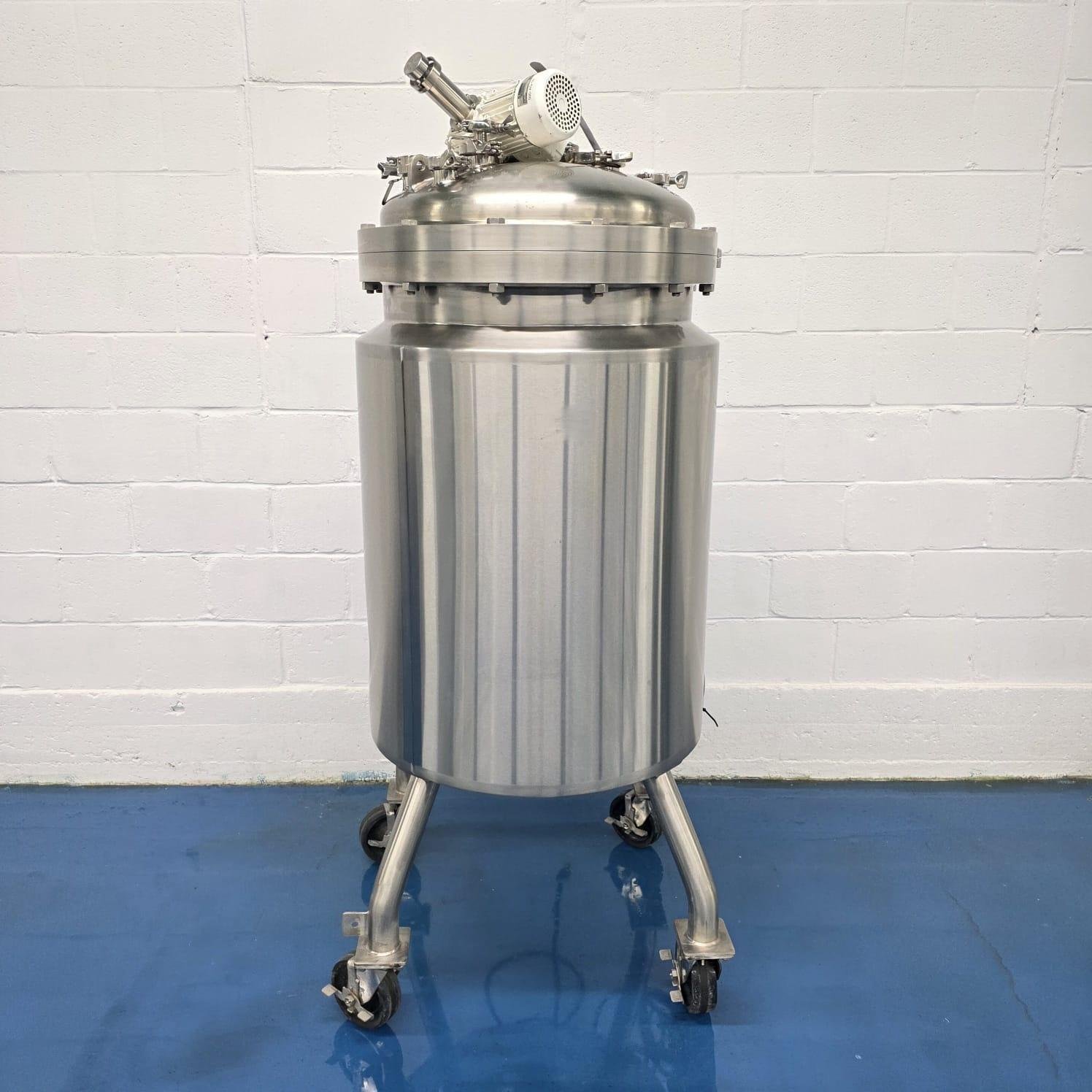

PRESSURIZED JACKETED SANITARY BIOTECH MIXING/HOLDING TANK INOX in 316 S/S 266LIT 565PINT 70GAL

Key Features:

Mixing and holding pressurized 316L s/s tank. On wheels. Mobile jacketed stainless steel process tank for pharmaceutical, biotech, or high-purity food processing  applications.

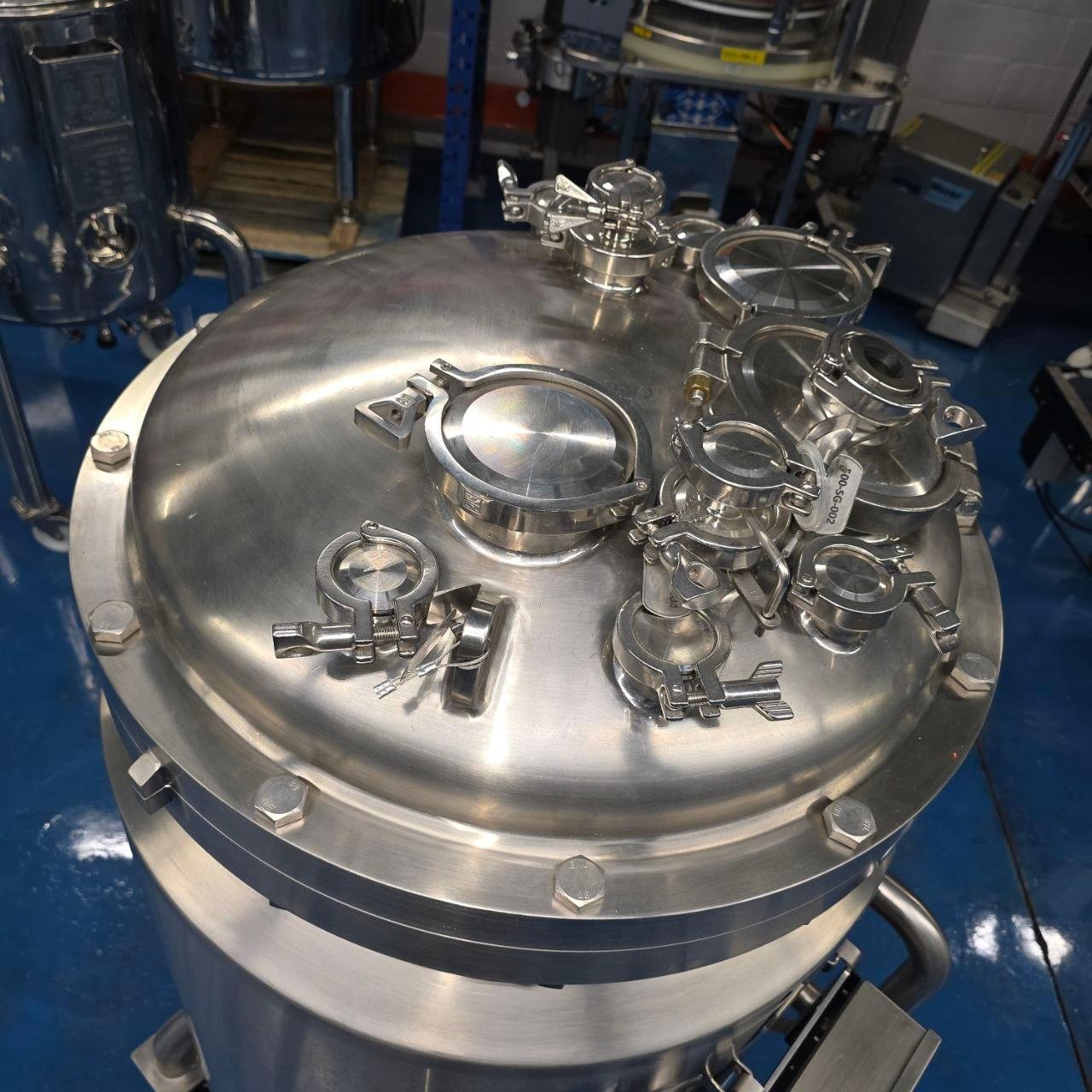

• ​​Sanitary Stainless Steel Construction: Built with 316L high-grade stainless steel with electropolished finish and sanitary fittings/ports internal wall on the top lid for aseptic handling.
• With  top mounted spray ball for liquid addition, recirculating flow or holding a CPI system.
• ​Jacketed Design: The outer wall surrounds the inner vessel to allow thermal fluids or steam to circulate for precise temperature control (heating or cooling).

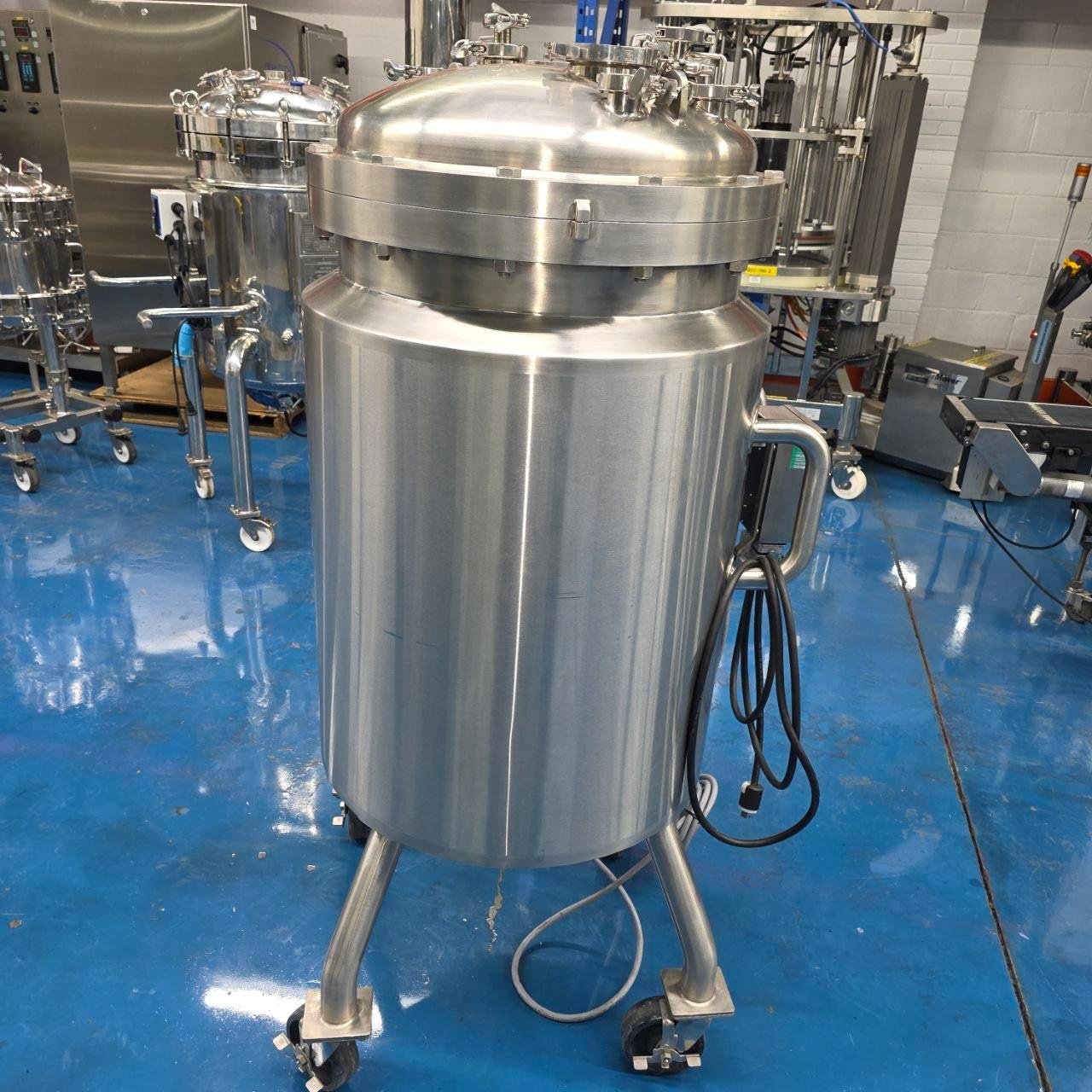

• ​Mobile Carriage: Mounted on a sturdy stainless steel frame with heavy-duty locking casters for easy relocation within a facility floor.

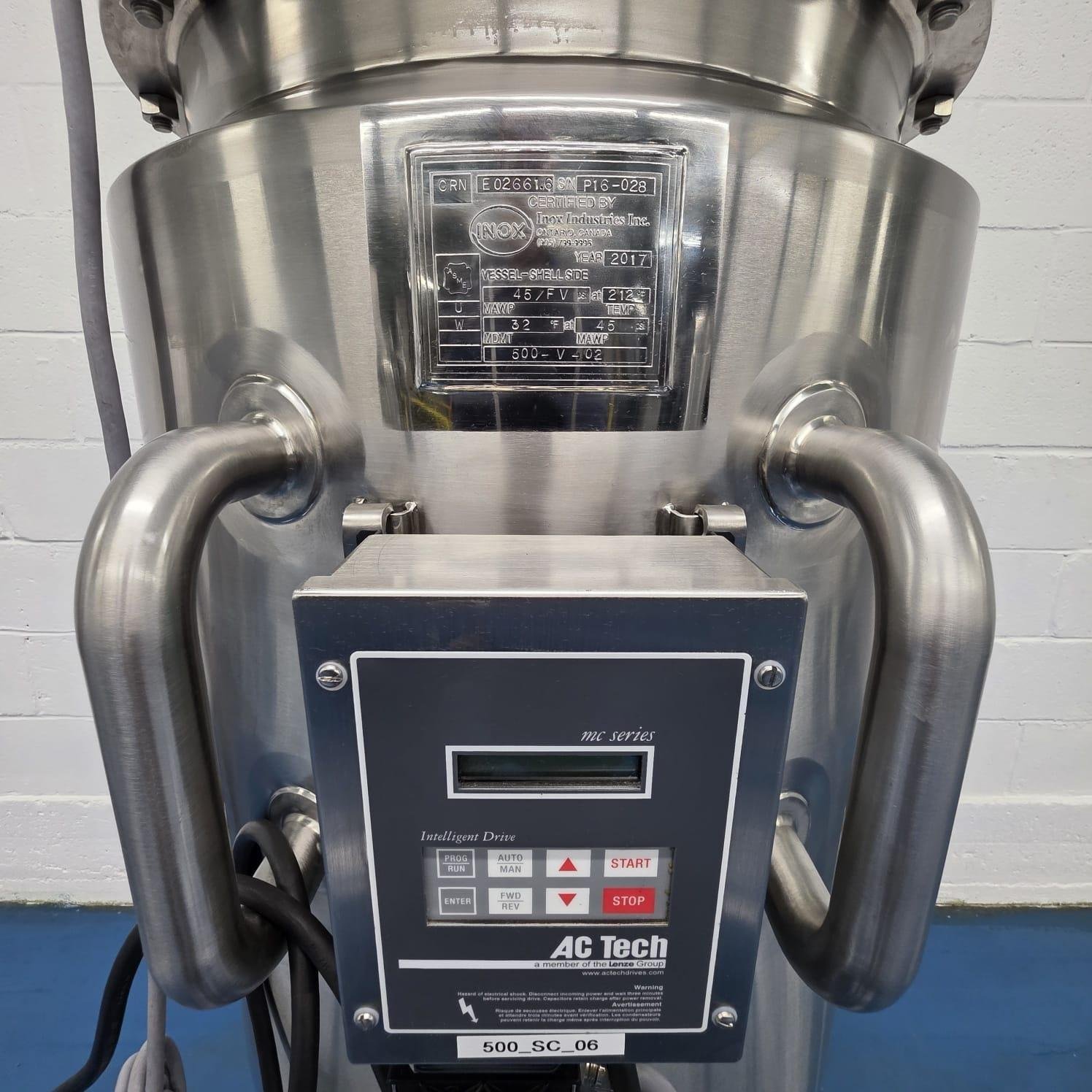

• ​Integrated Drive/Control Box: Equipped with an AC Tech variable frequency drive (VFD) unit mounted on the front to regulate mixer or agitator speeds.

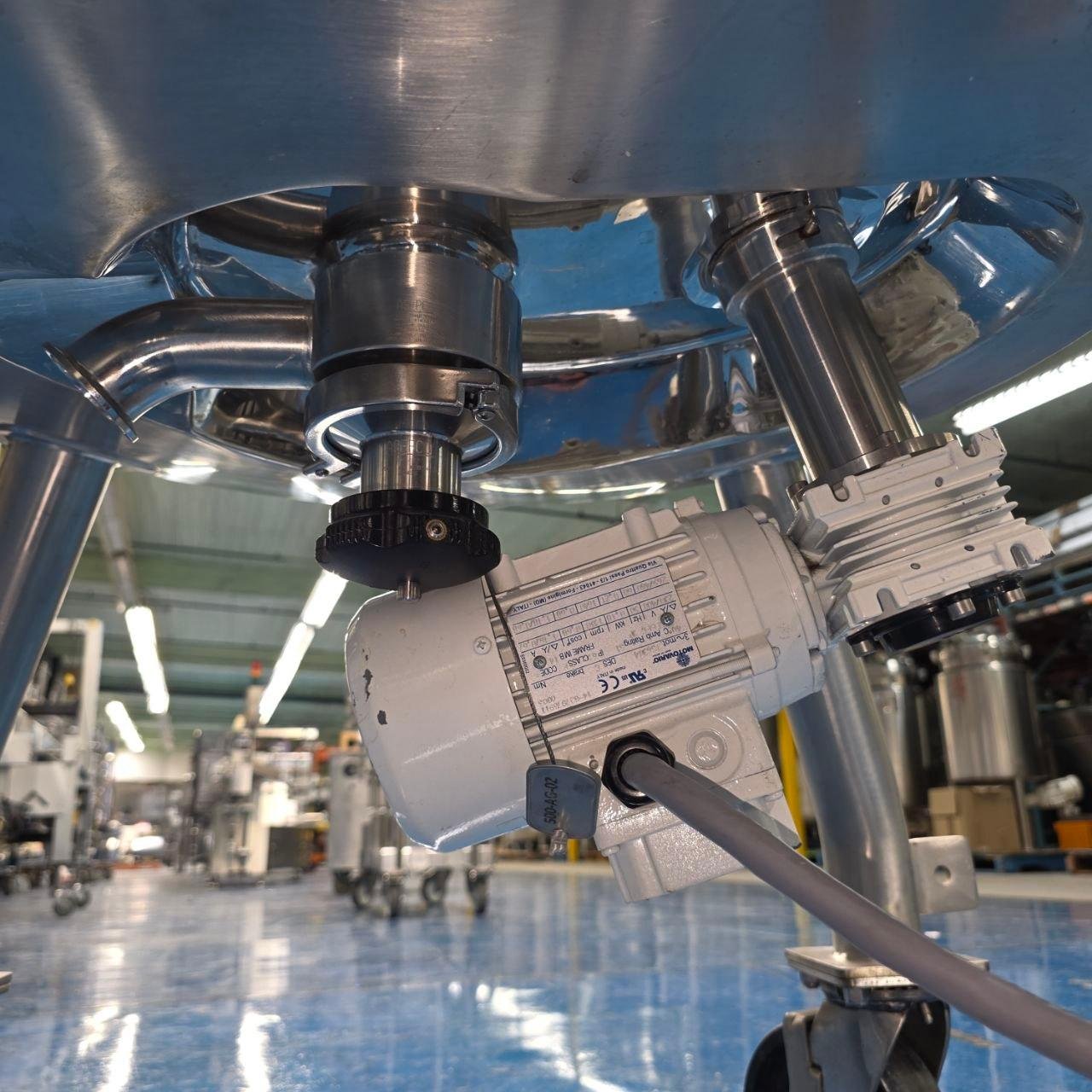

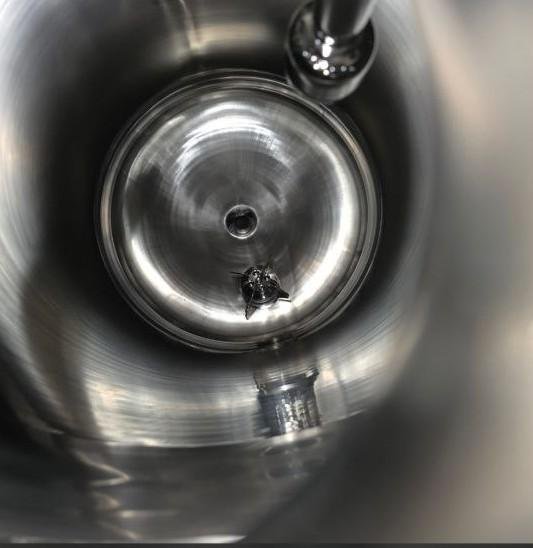

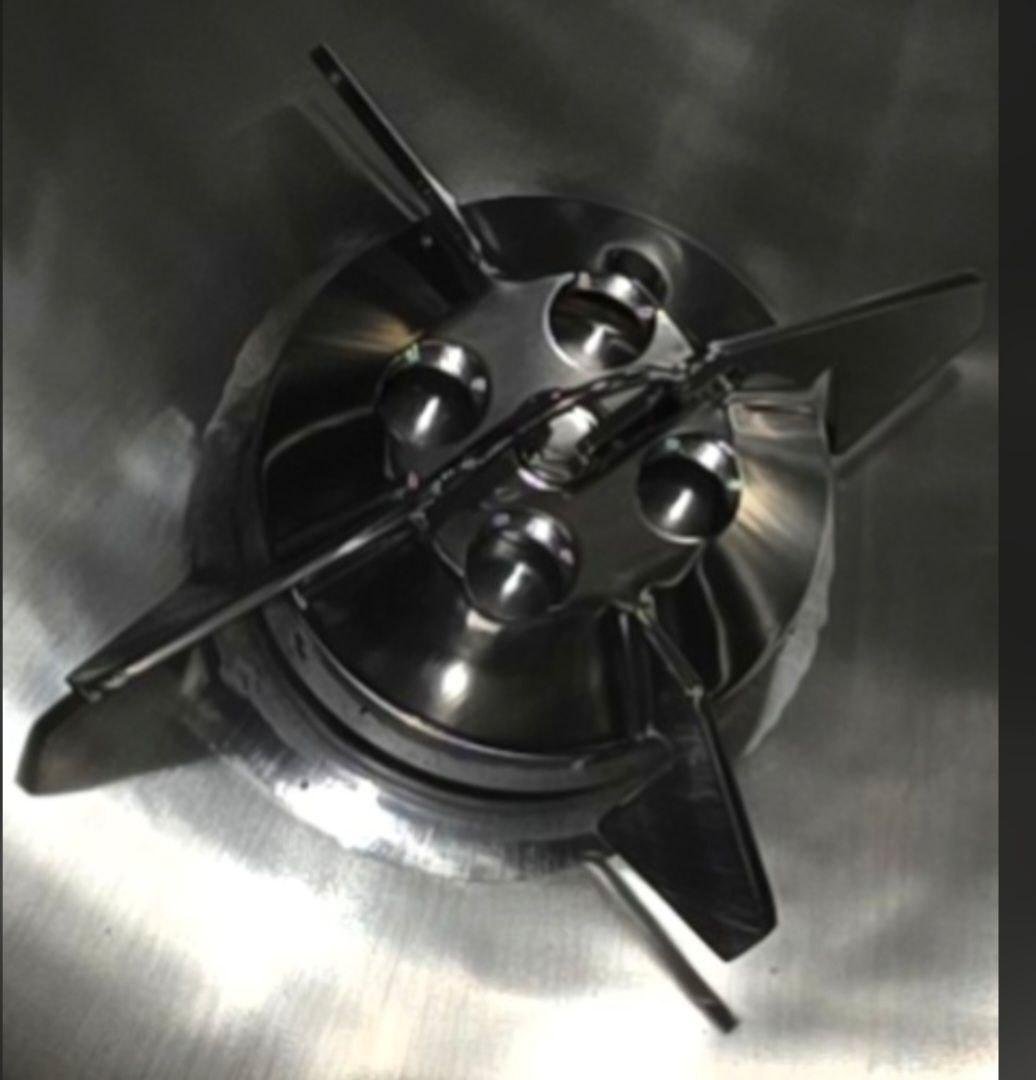

• With bottom-mounted Sanitary Pharmaceutical Biotech prpcess agitator Shear-Mixer Axial-Flow four- blade imppeler Type METENOVA

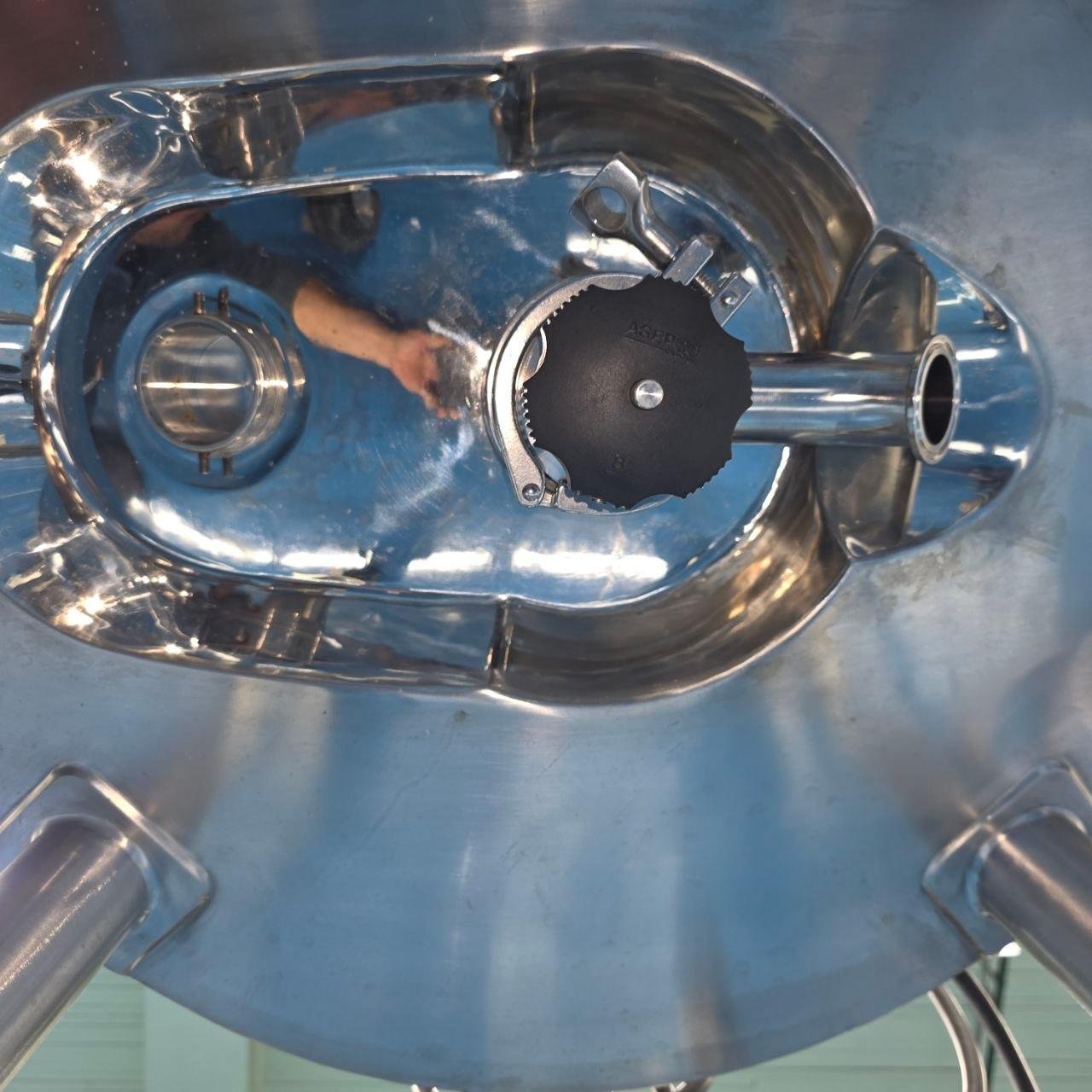

• With Bottom Drain port with ACEPTCO hygienic diaphragm Flush-bottom valve 1 1/2'' diam ( high-purity aceptic valve for biotech pharmaceutical and food prpcessing applications).

   Electrical Data:

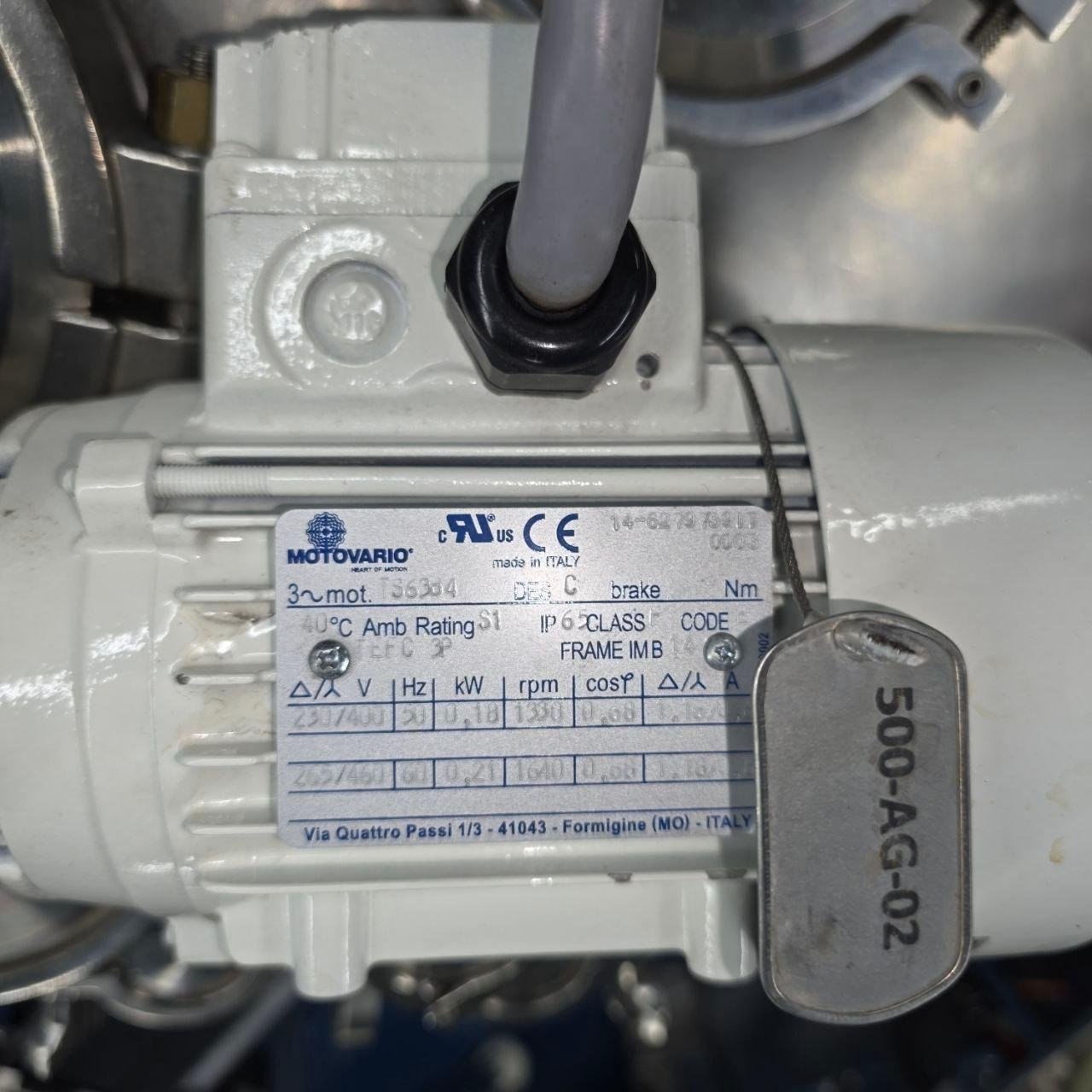

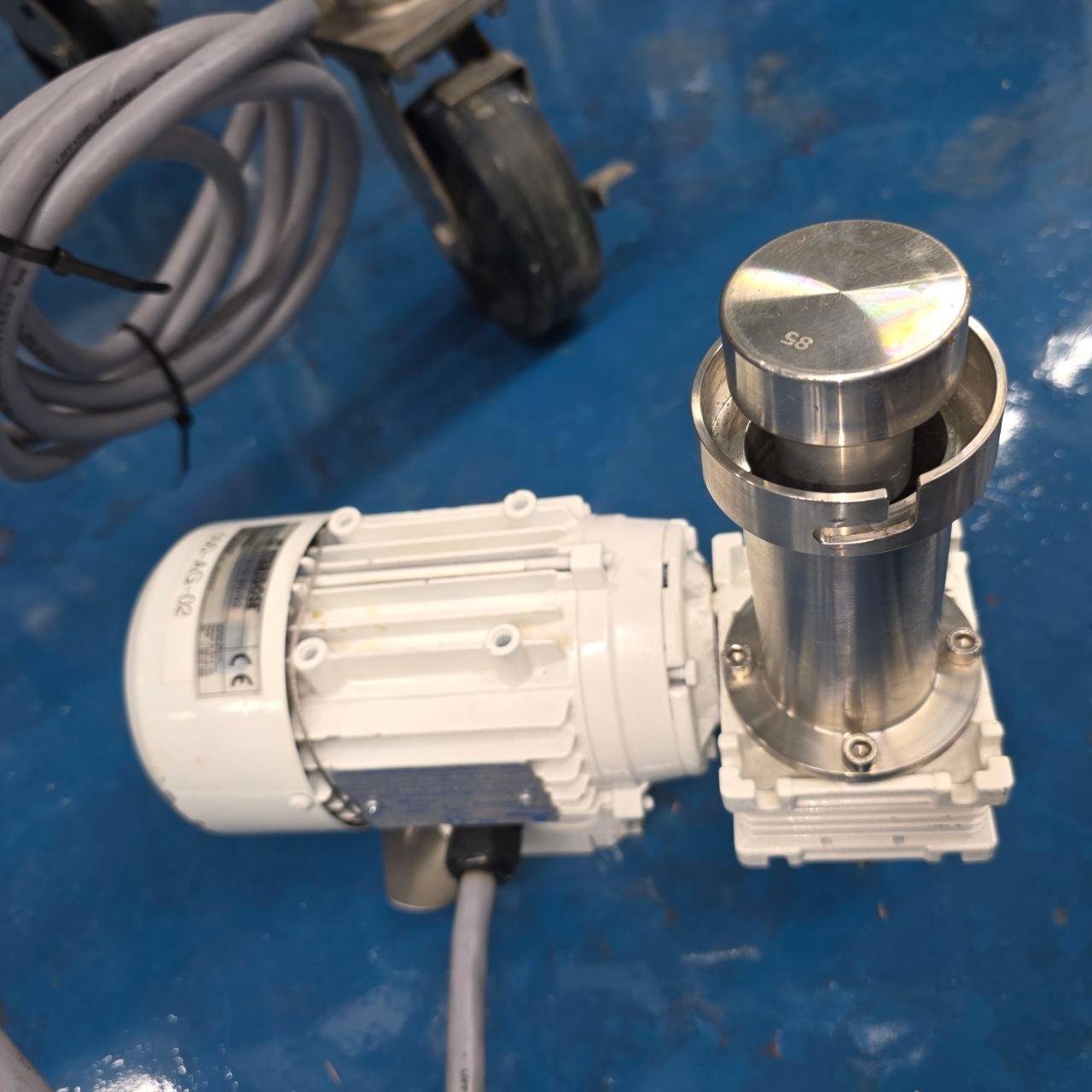

• With magnetic motor MOTOVARIO  Drive 230 VOLTS 3PH 60HZ.
• With 120volts Drive Inteligent Drive MC Series  120 volts 1 ph 60hz.

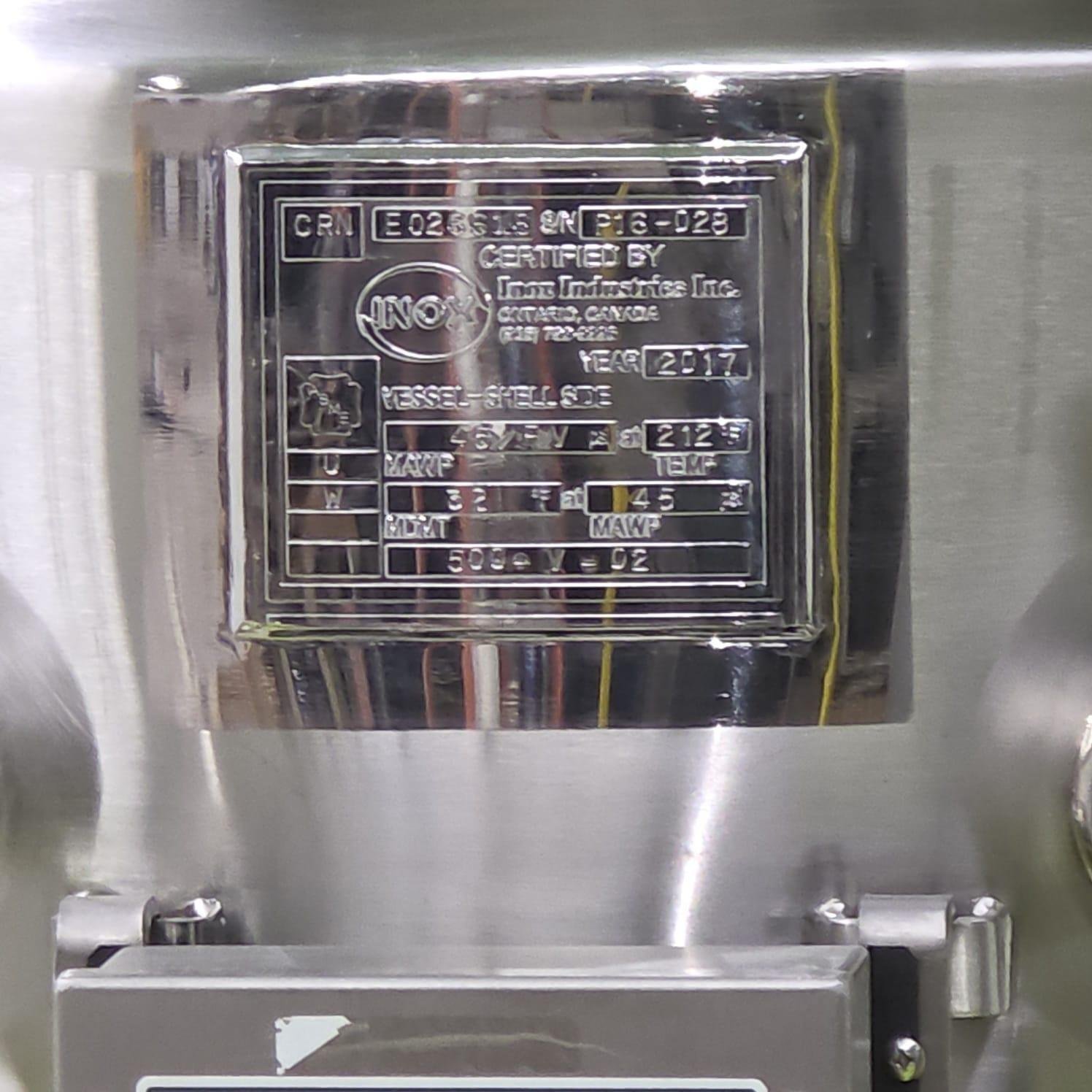

• Temperature and pressure: 32F at 45 psi / 45F at 212psi.
• On wheels.
