PRESSURIZED JACKETED SANITARY BIOTECH MIXING/HOLDING TANK INOX in 316 S/S 266LIT 565PINT 70GAL

Key Features:

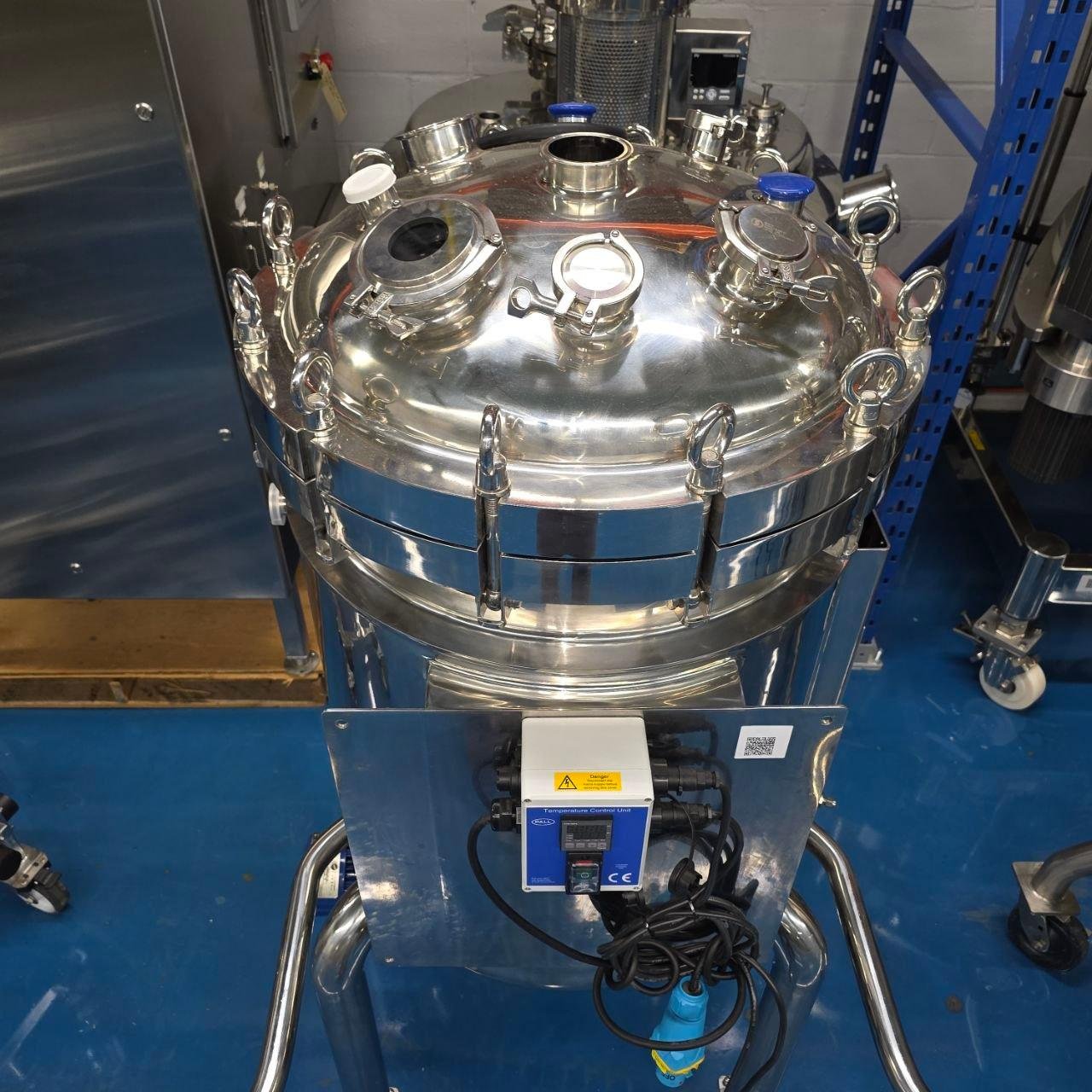

Mixing and holding pressurized 316L s/s tank. On wheels. Mobile jacketed stainless steel process tank for pharmaceutical, biotech, or high-purity food processing  applications.

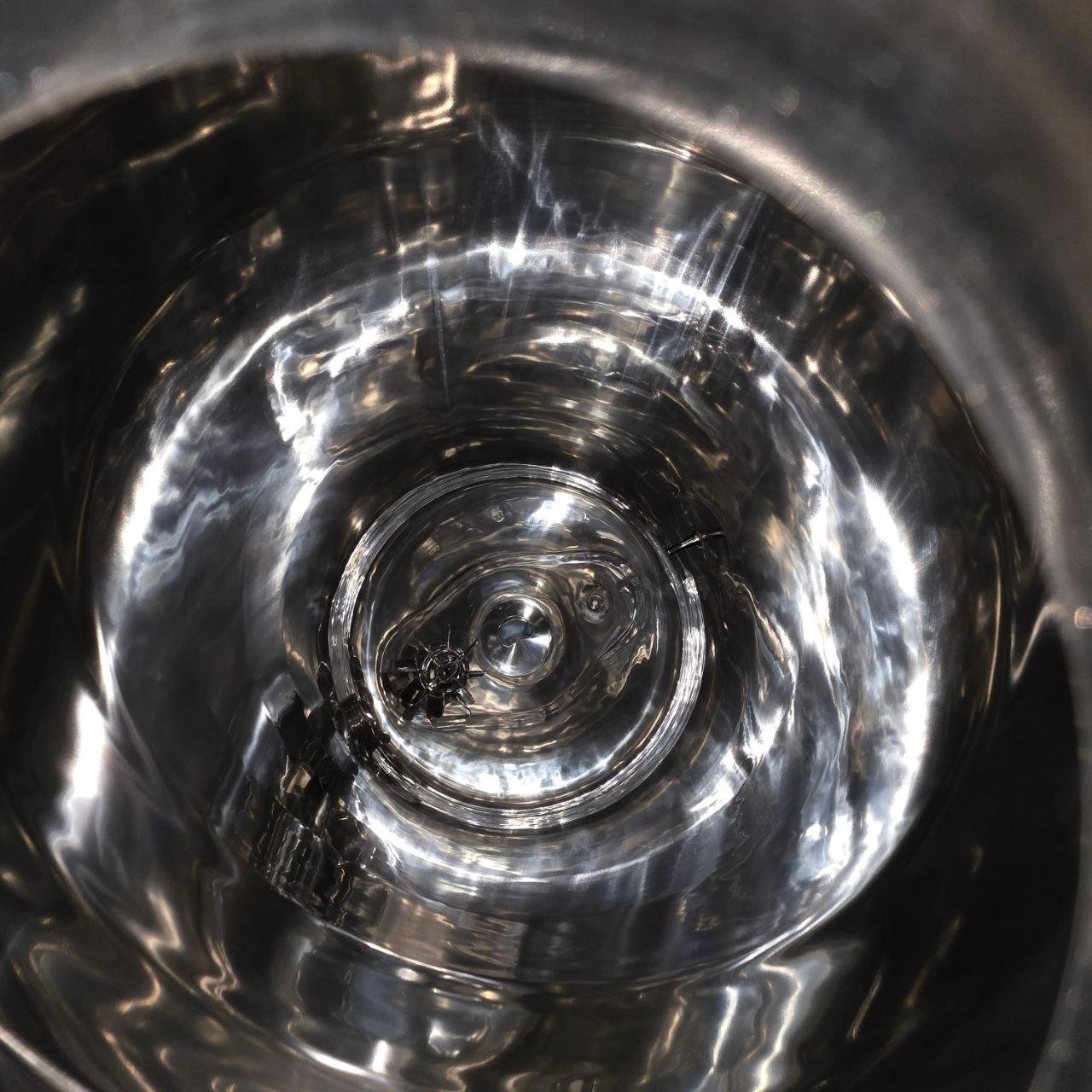

• ​​Sanitary Stainless Steel Construction: Built with 316L high-grade stainless steel, electropolished finish internal wall and sanitary with fittings/ports on the top lid for aseptic handling and hemispheric dish bottom.
• ​Jacketed Design: The outer wall surrounds the inner vessel to allow thermal fluids or steam to circulate for precise temperature control (heating or cooling).

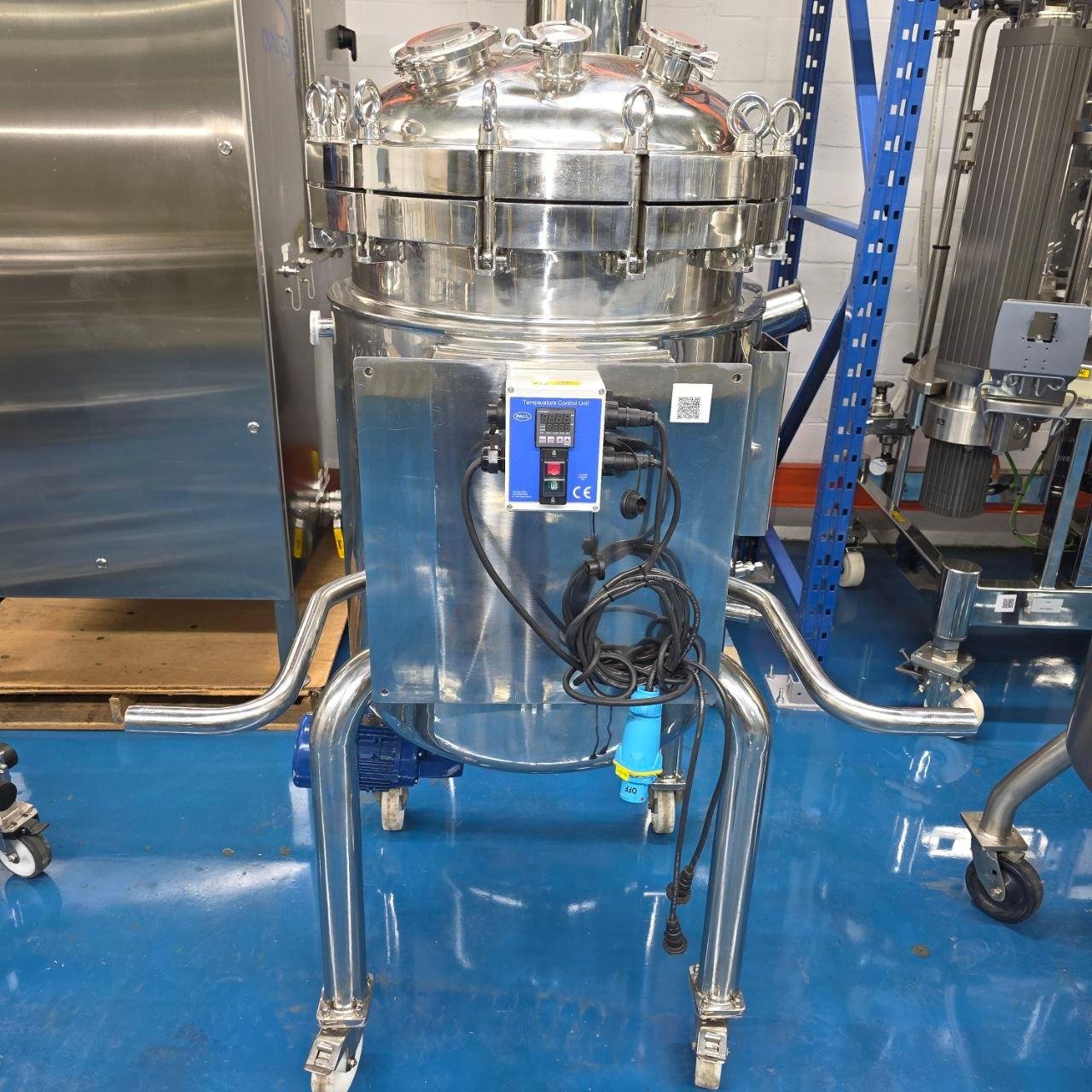

• ​Mobile Carriage: Mounted on a sturdy stainless steel frame with heavy-duty locking casters for easy relocation within a facility floor.
• ​Integrated Drive/Control Box: Equipped with an PALL variable Temperatura Control Unit drive unit mounted on the front.

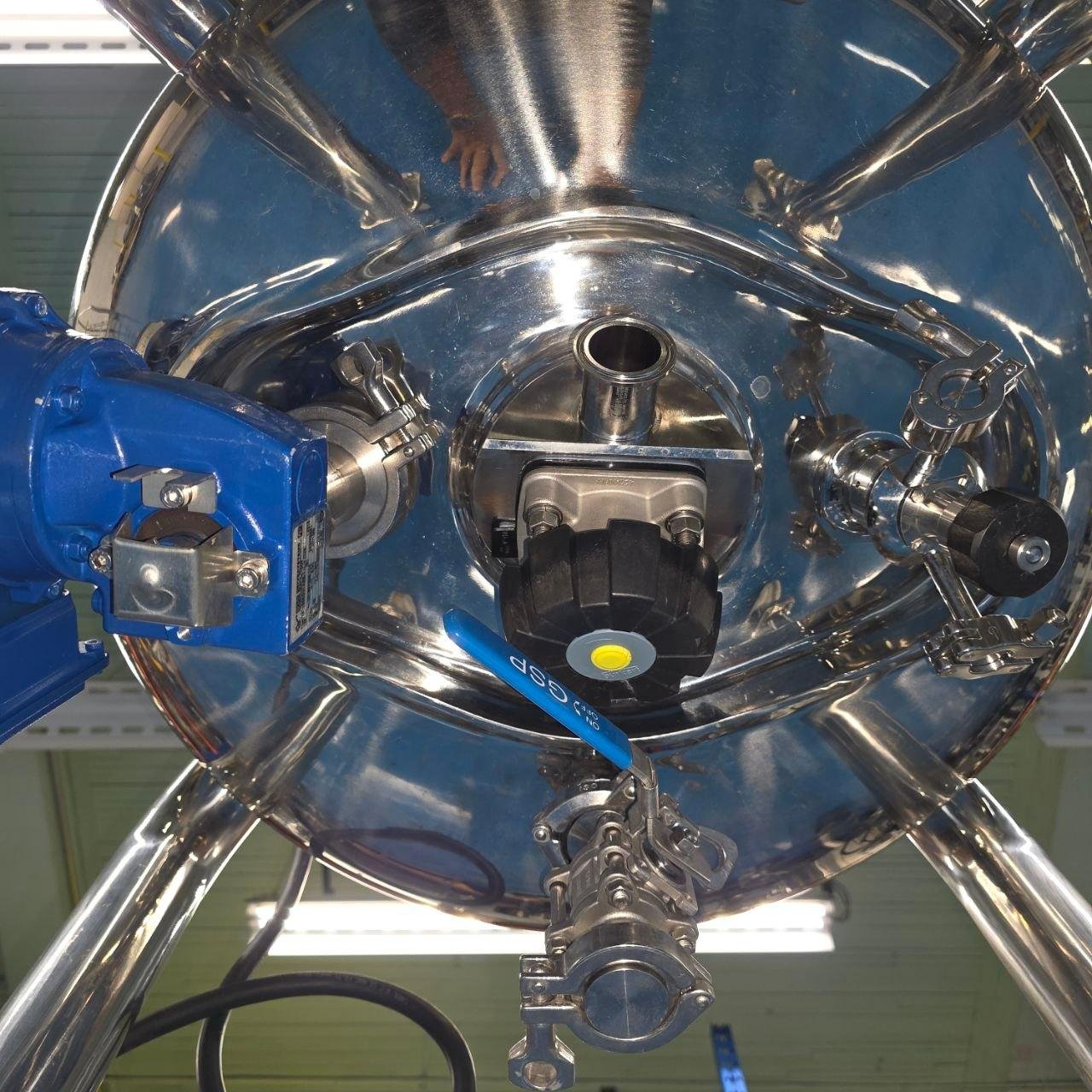

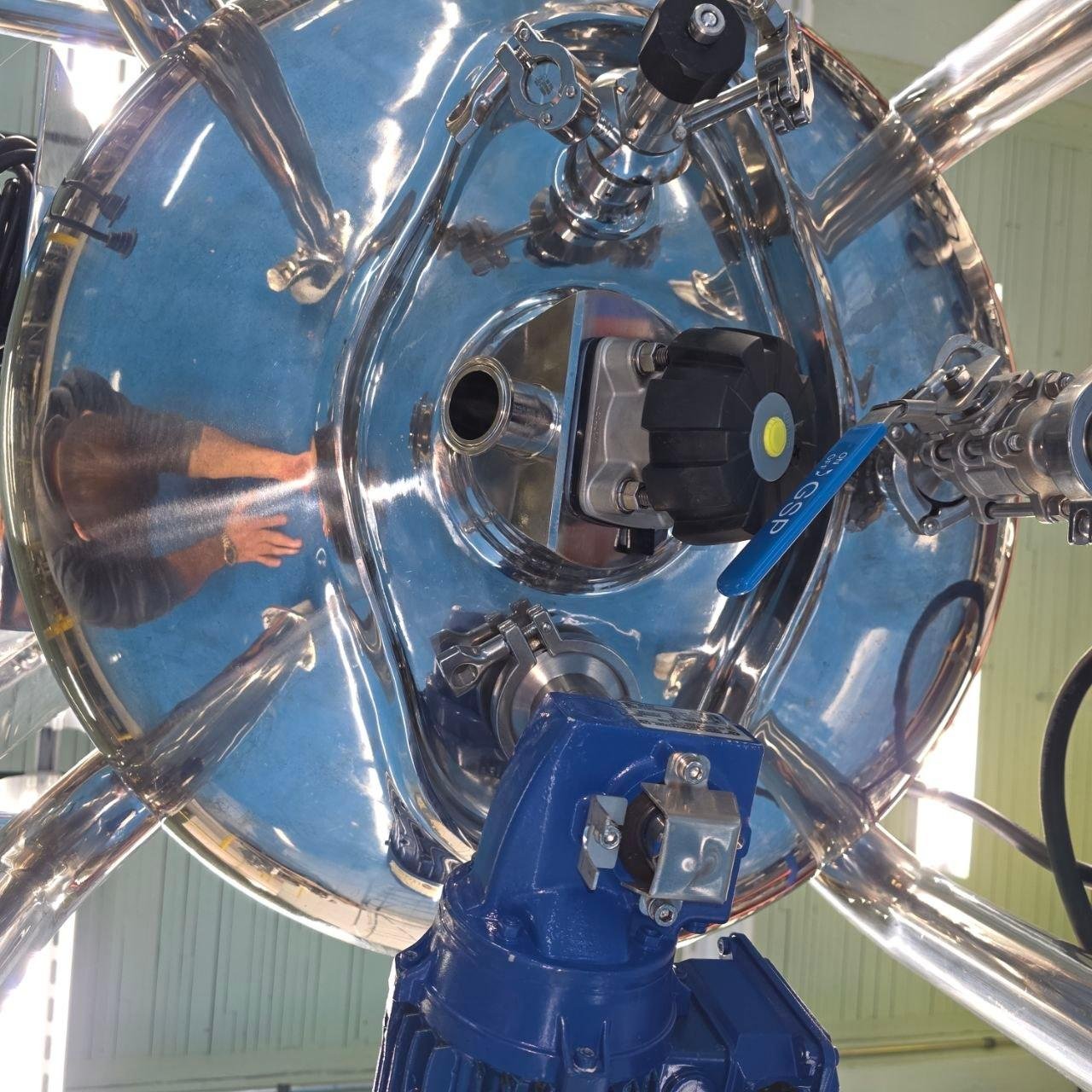

• With bottom-mounted Sanitary Pharmaceutical Biotech prpcess agitator Shear-Mixer Axial-Flow eight- blade imppeler Type METENOVA

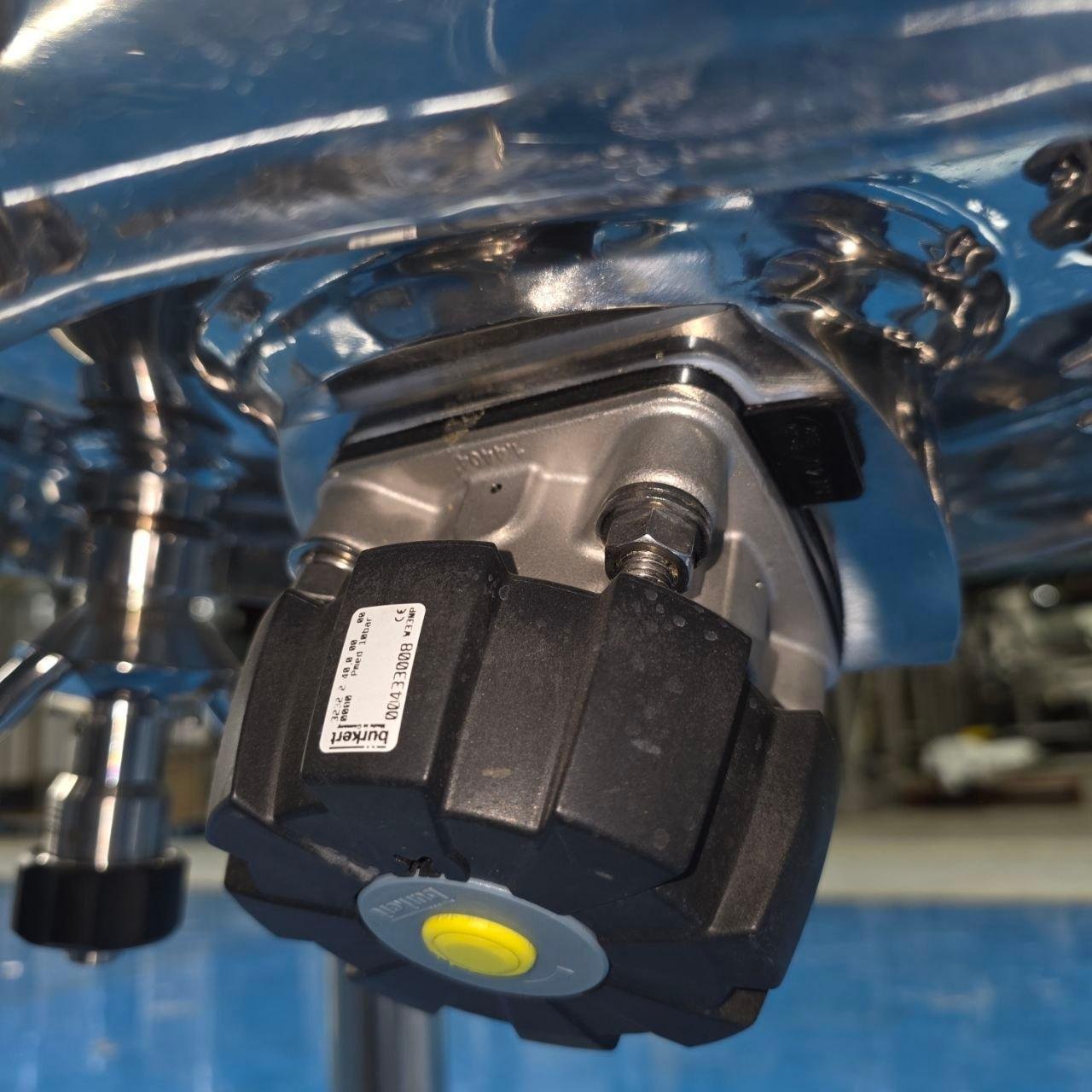

• With BURKERT Type 3232 Diaphragm Valve / Actuator Type 2/2 way to control, handle, regulate or isolate corrosive fluid.
• With a Rieger Aseptic Sampling BIOCHECK  Valve, with tri-clamp conectors mounted to the bottom port, used for purging the vessel.                                                                                                                 Pressure and temperature:

       Shell:

• -Design Press. 0.3PSI at 130°C. Hydro Test press;0.39
• Jacket
• -Design Press.0.3 at 38°C. Hydro test press:0.39                                                                        Electrical Data:
• -Laval MAGNETIC Motor Type Inverter DUTY of 575 volts 5hp, 3ph, .76amps, 60hz, 1720 rpm.
