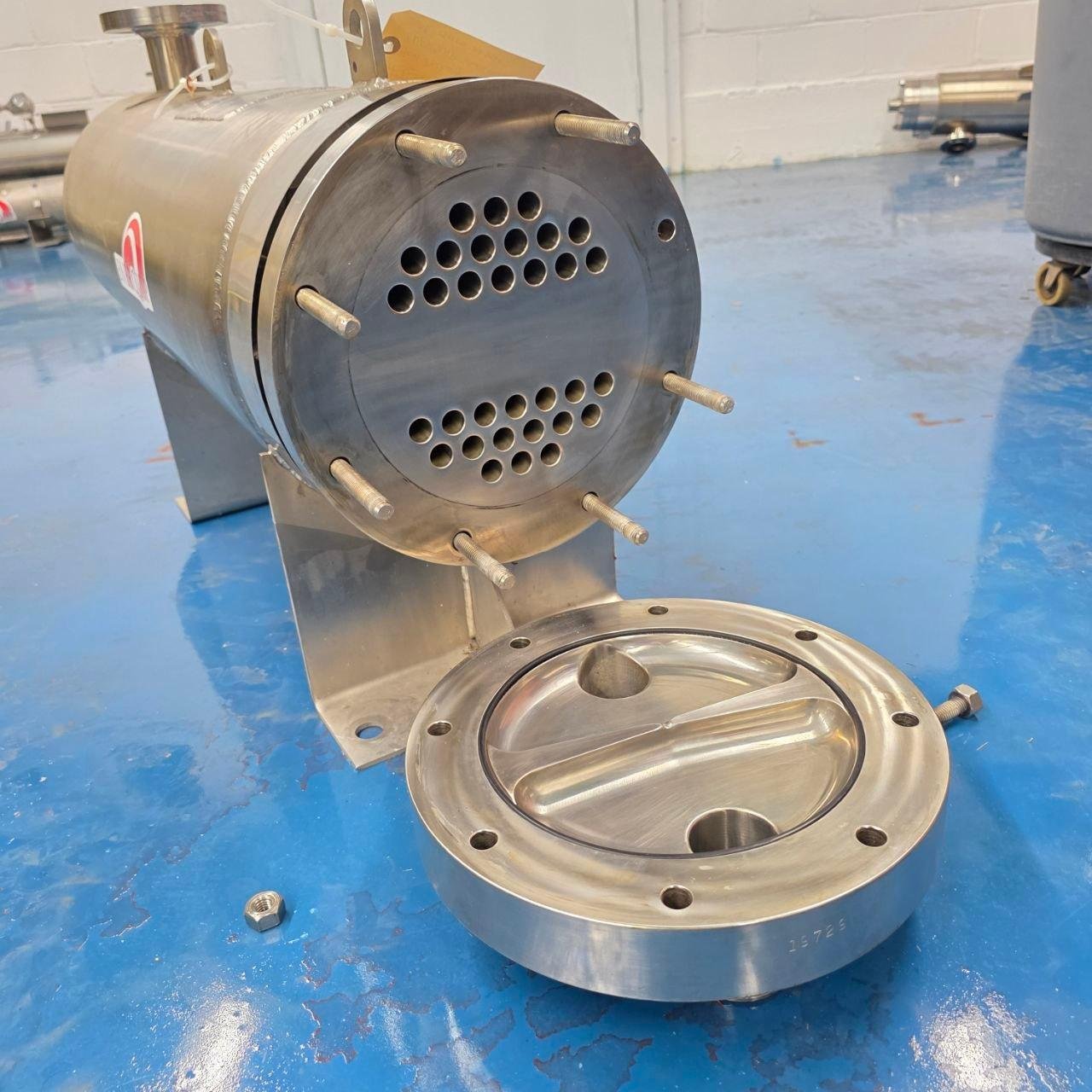

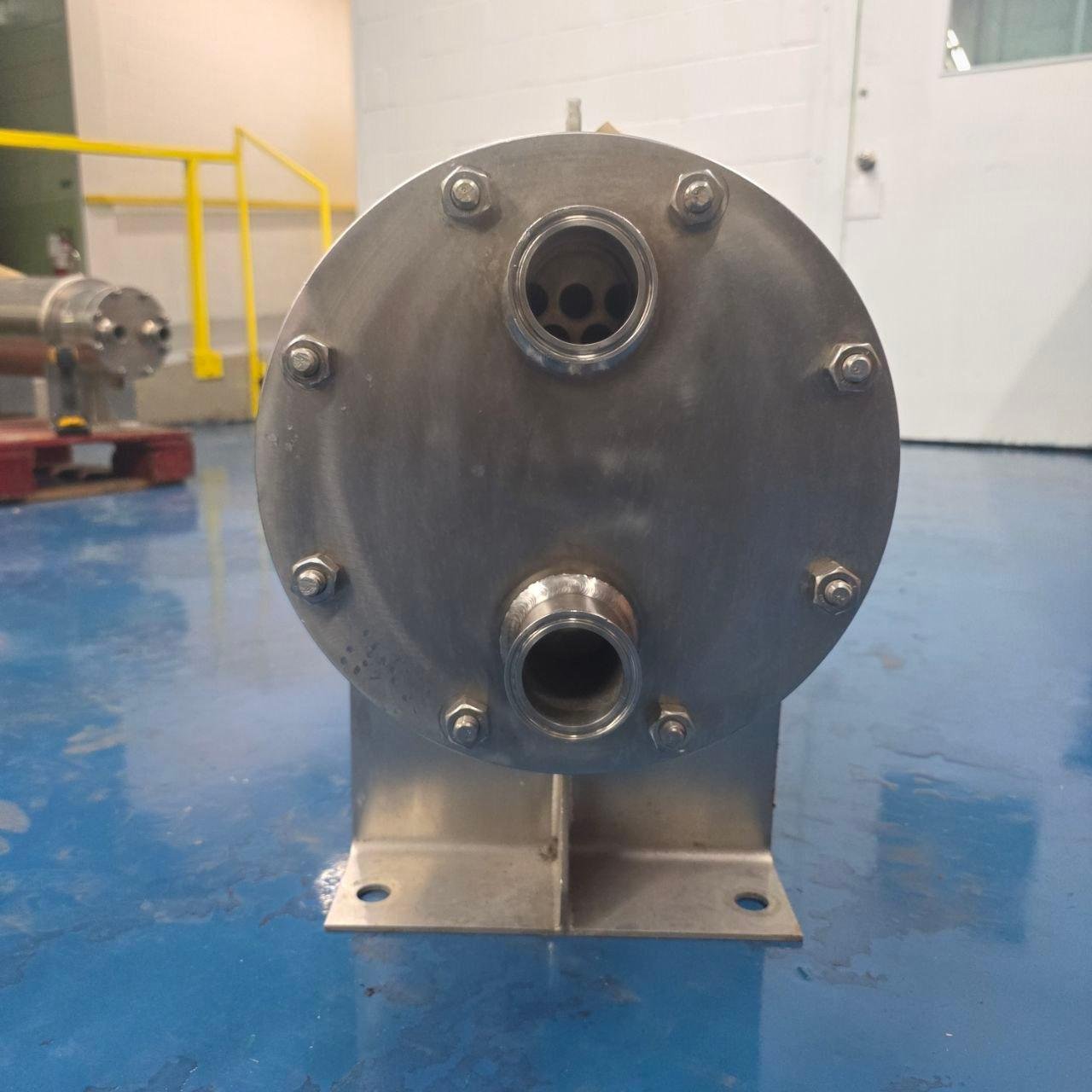

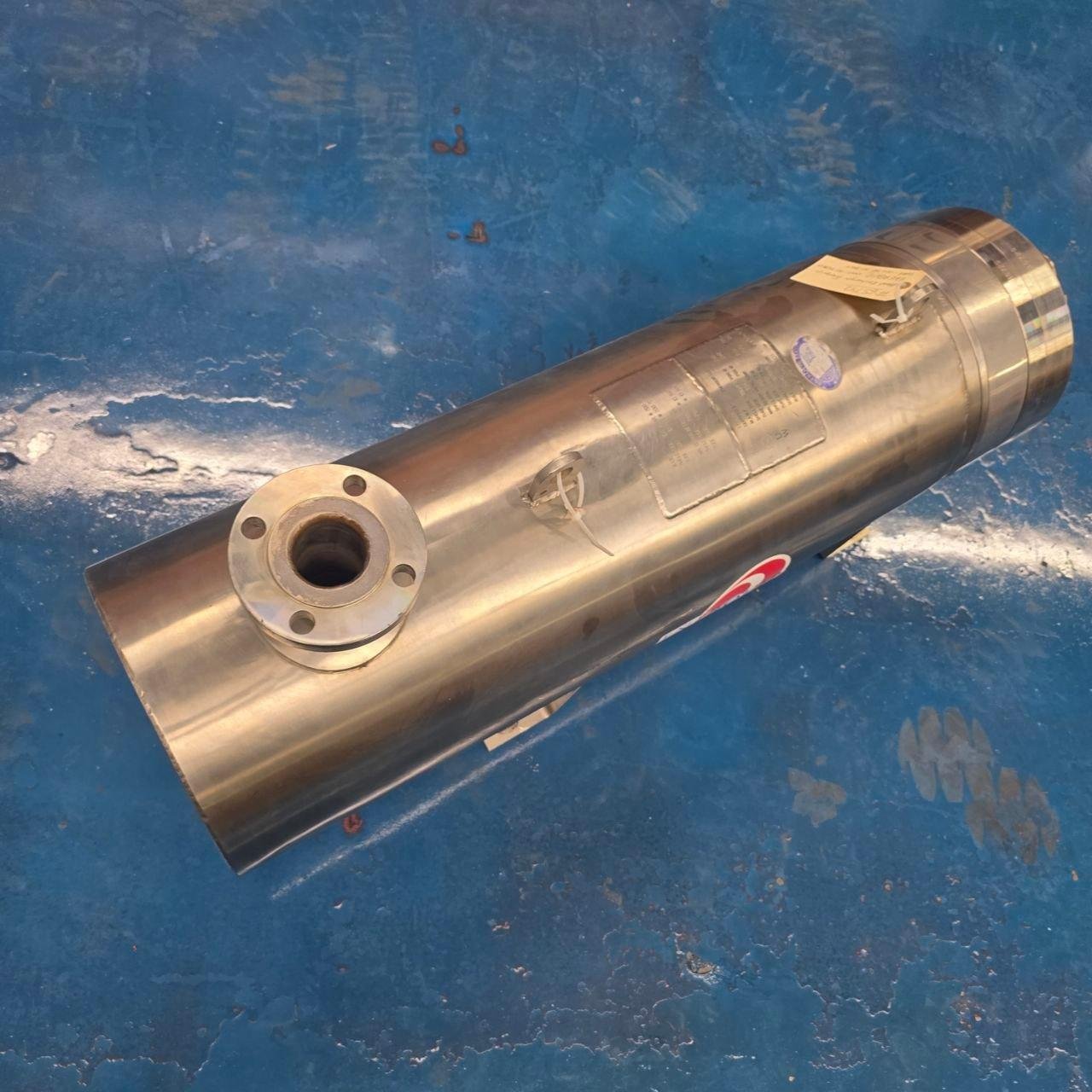

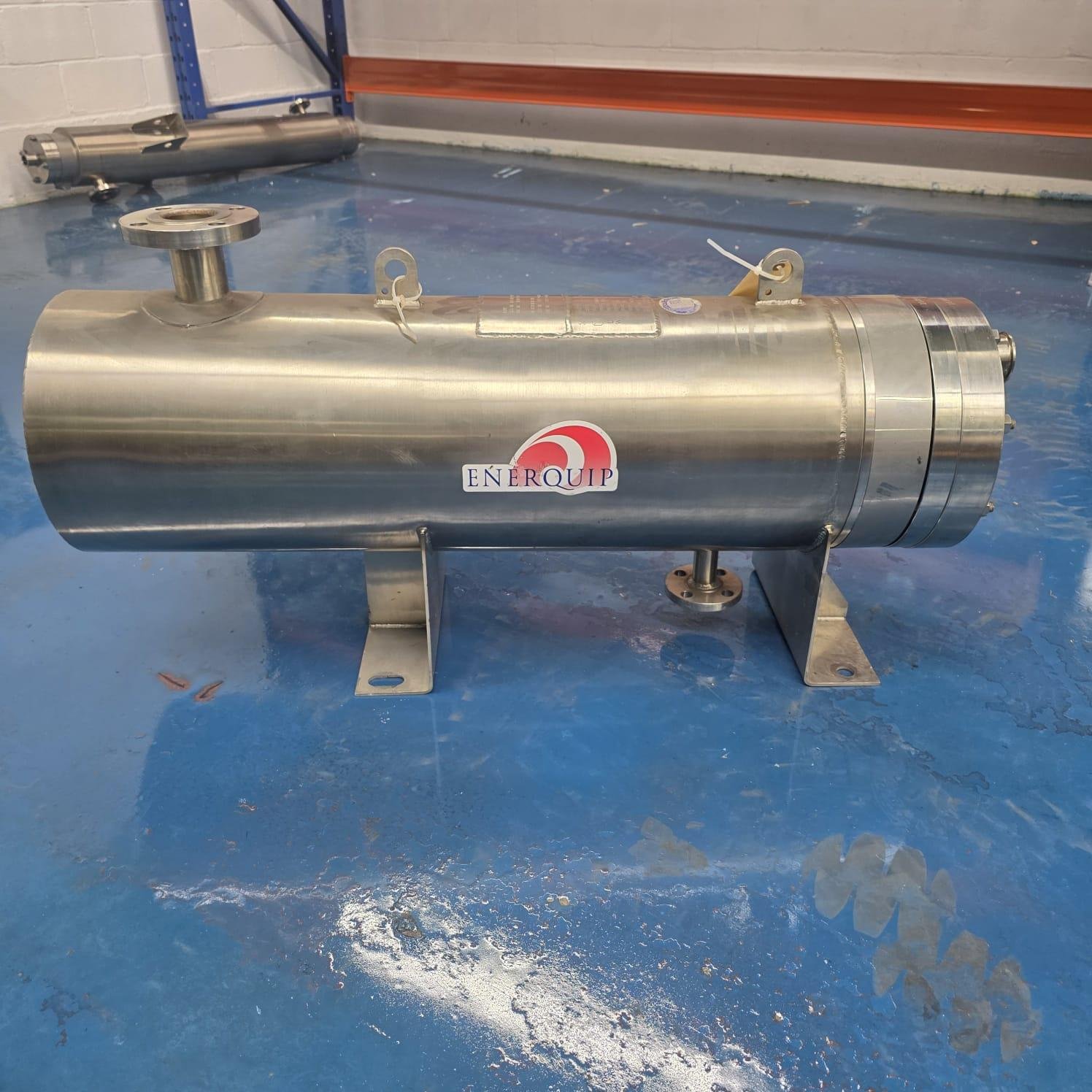

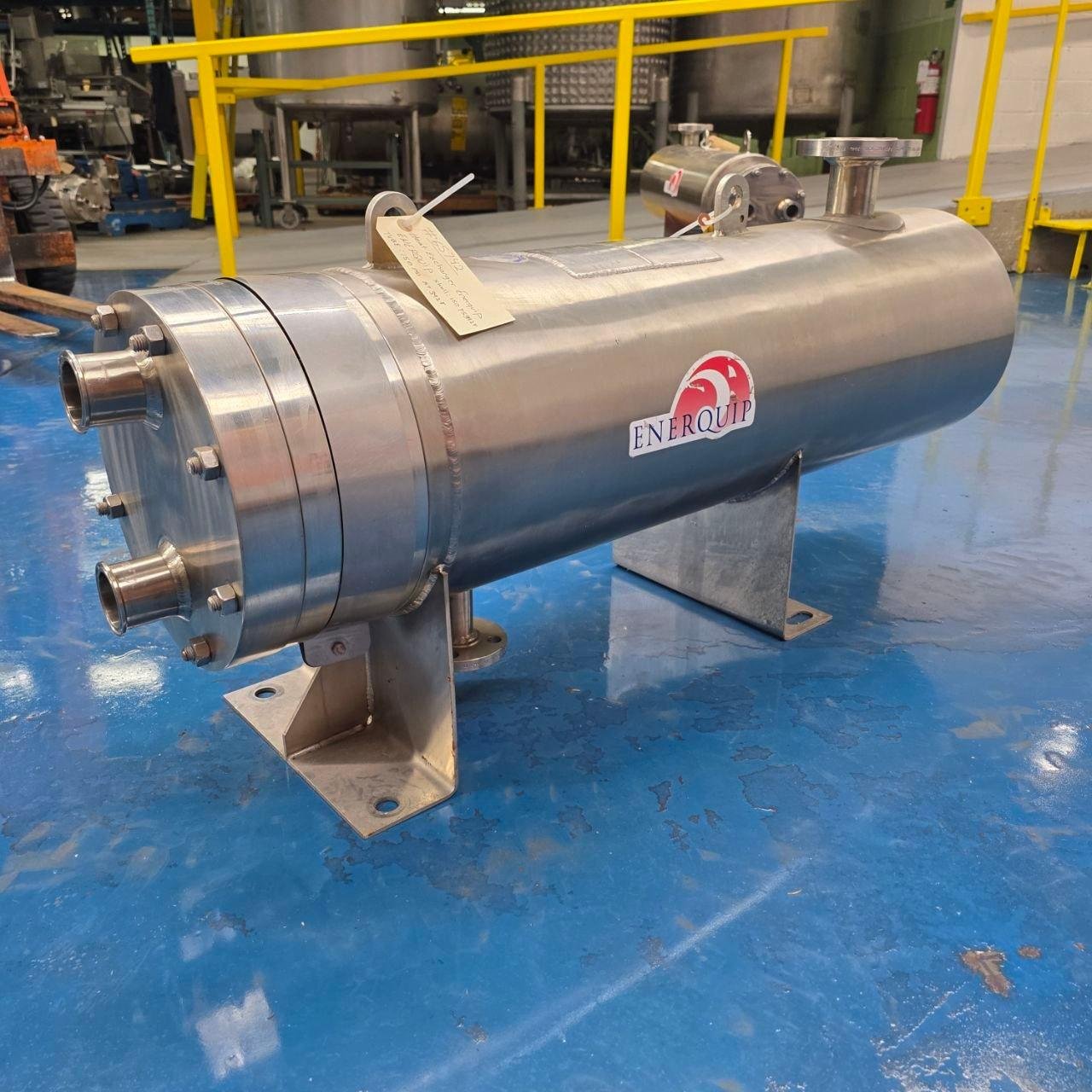

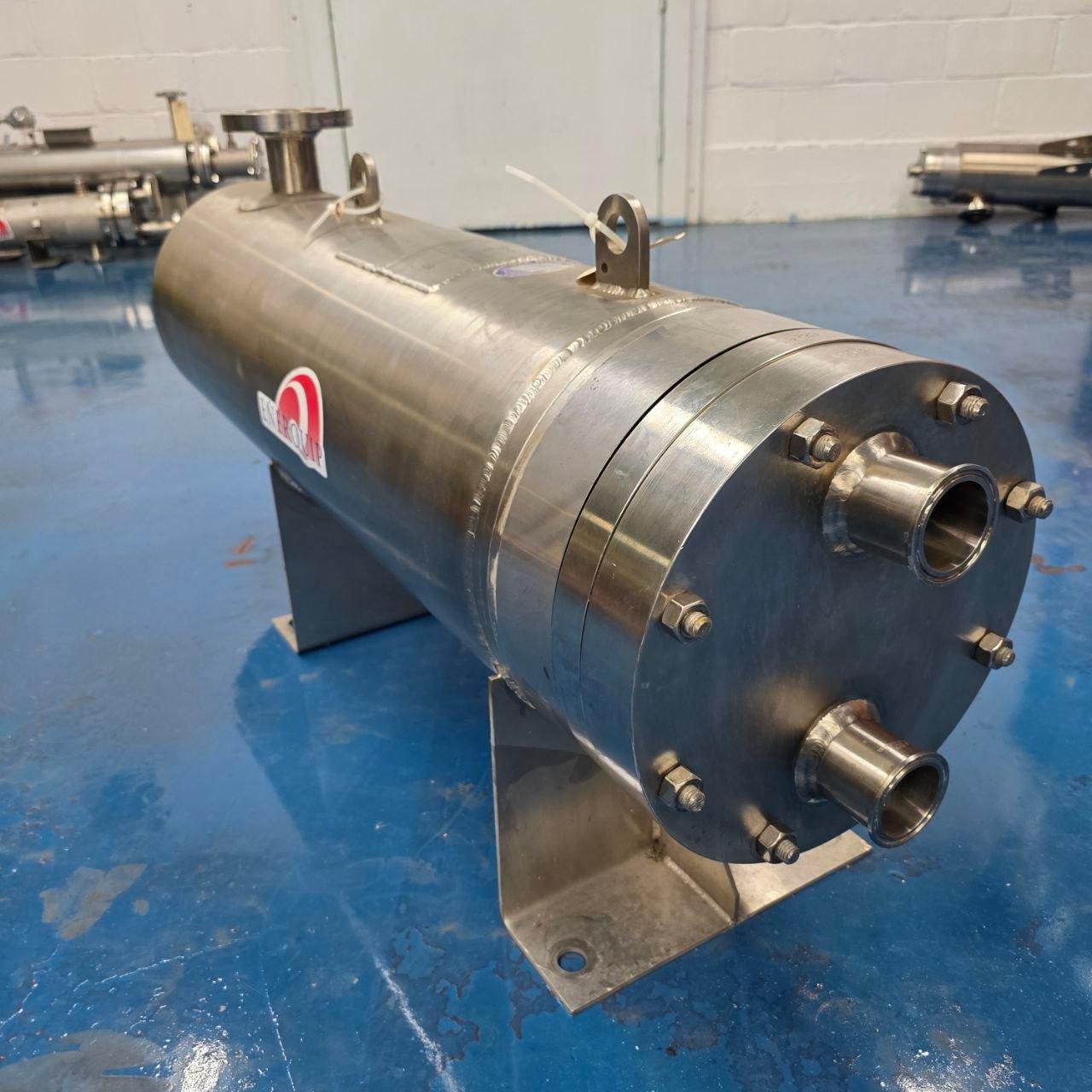

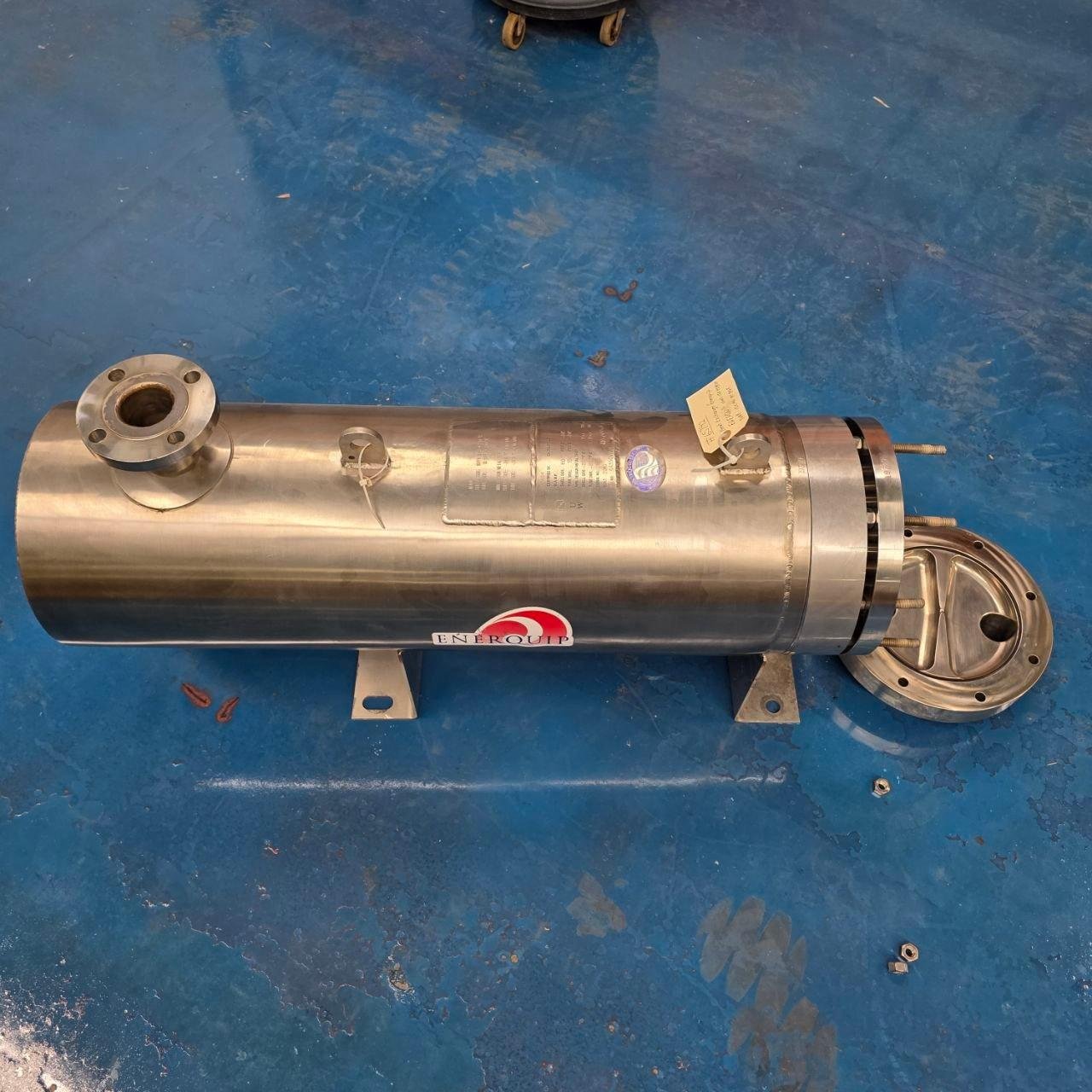

HEAT EXCHANGER ENERQUIP WITH 32 TUBES OF 5/8 INCH.

WAWP

SHELL SIDE:

10/FV BAR AT 200C

TUBE SIDE:

10 BAR AT 200C

MIN DESIGN METALTEMP:

SHELL SIDE: -28.9 C AT 10 BAR

TUBE SIDE: -28.9C AT 10 BAR

WAWP

SHELL SIDE: 150/FV PSIG AT 392F

TUBE SIDE: 150 PSIG AT 392F

MIN DESIGN METAL TEMP:

SHELL SIDE -20 FAT 150PSIG

TUBE SIDE -20 F AT 150 PSIG

SERIAL No.19729
