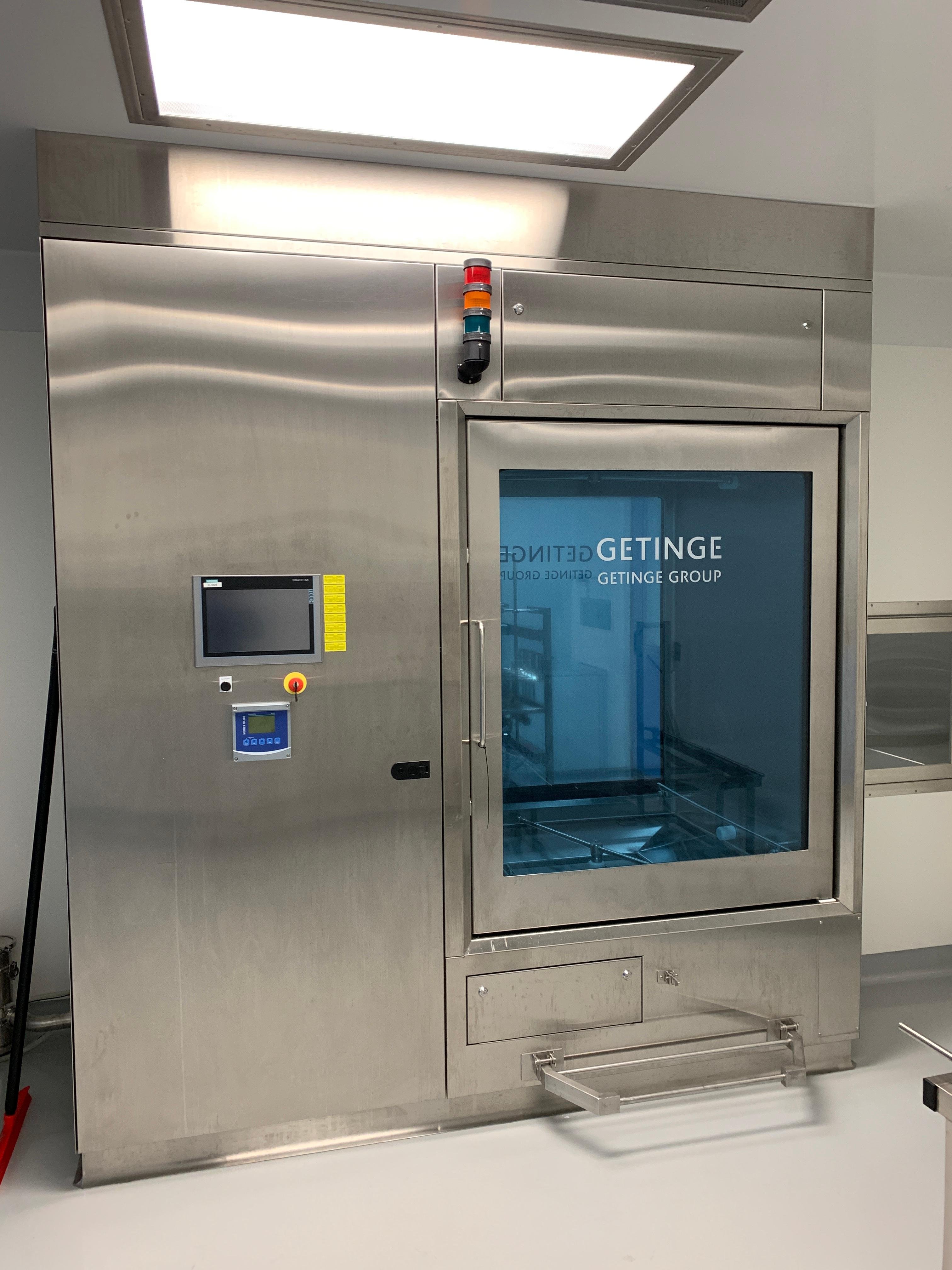

WASHING SYSTEM GETINGE Model Getinge GEW 101210

https://www.getinge.com/en-ca/products/gew-cgmp-washer-dryer/?tab=2

Dimensions et capacity:

Internal Dimensions : 1005 x 1200 x 1005 mm (40 x 47 x 40 inch).

Chamber capacity: 1250 L (330 USgall ).

Internal dimensions: 1005 x 1200 x 1005 mm (40 x 47 x 40 inches). Chamber capacity: 1250 L (330 US gallons). Doors: 1 or 2 vertical hinged glass doors (single-end or pass-through); thermal/acoustic insulation, optional contamination control barrier (CCB).

Washing and Drying System

Washing: Sanitary recirculation, steam/electric heat exchanger, integrated spray ramps, up to 5 peristaltic dosing pumps (cleaning agents, neutralizers).

Final rinse: Single Pass Final Rinse (SPFR) option with WFI, conductivity/TOC monitoring; slope >2% for complete drainage.

Drying: Double HEPA-filtered channel (chamber + hydraulic circuit), high-capacity blowers, ceramic/steam heating.

Conformity & automatisation

Normes : cGMP, GAMP 5, ASME BPE, 21 CFR Part 11 ; construction 316L, orbital welding, (3.1 certifs).

Contr?le : PLC modulaire (Allen Bradley/Siemens), HMI tactile, logging alarmes/processus.

Utilisation typique

Id?al pour bio-pharma/API : verrerie, lignes de remplissage, outillages ; consommation eau/utilities minimale, racks modulaires/custom (verre, IBC, hoses). Pour fiches compl?tes ou devis, contactez Getinge Canada.

Dimensions et capacity

Internal dimensions: 1005 x 1200 x 1005 mm (40 x 47 x 40 inches). Chamber capacity: 1250 L (330 US gallons). Doors: 1 or 2 vertical hinged glass doors (single-end or pass-through); thermal/acoustic insulation, optional contamination control barrier (CCB).

Compliance and Automation

English: Standards: cGMP, GAMP 5, ASME BPE, 21 CFR Part 11; 316L construction, orbital welding, full traceability (3.1 certs). Control: Modular PLC (Allen Bradley/Siemens), touch HMI, alarm/process logging, auto-calibration.

Normes : cGMP, GAMP 5, ASME BPE, 21 CFR Part 11 ; construction 316L, orbital welding, tra?abilit? compl?te (3.1 certifs). Contr?le : PLC modulaire (Allen Bradley/Siemens), HMI tactile, logging alarmes/processus, ?talonnage auto.

Typical Use / Utilisation typique

 Ideal for bio-pharma/API: glassware, filling lines, tooling; minimal water/utilities consumption, modular/custom racks (glass, IBC, hoses).
