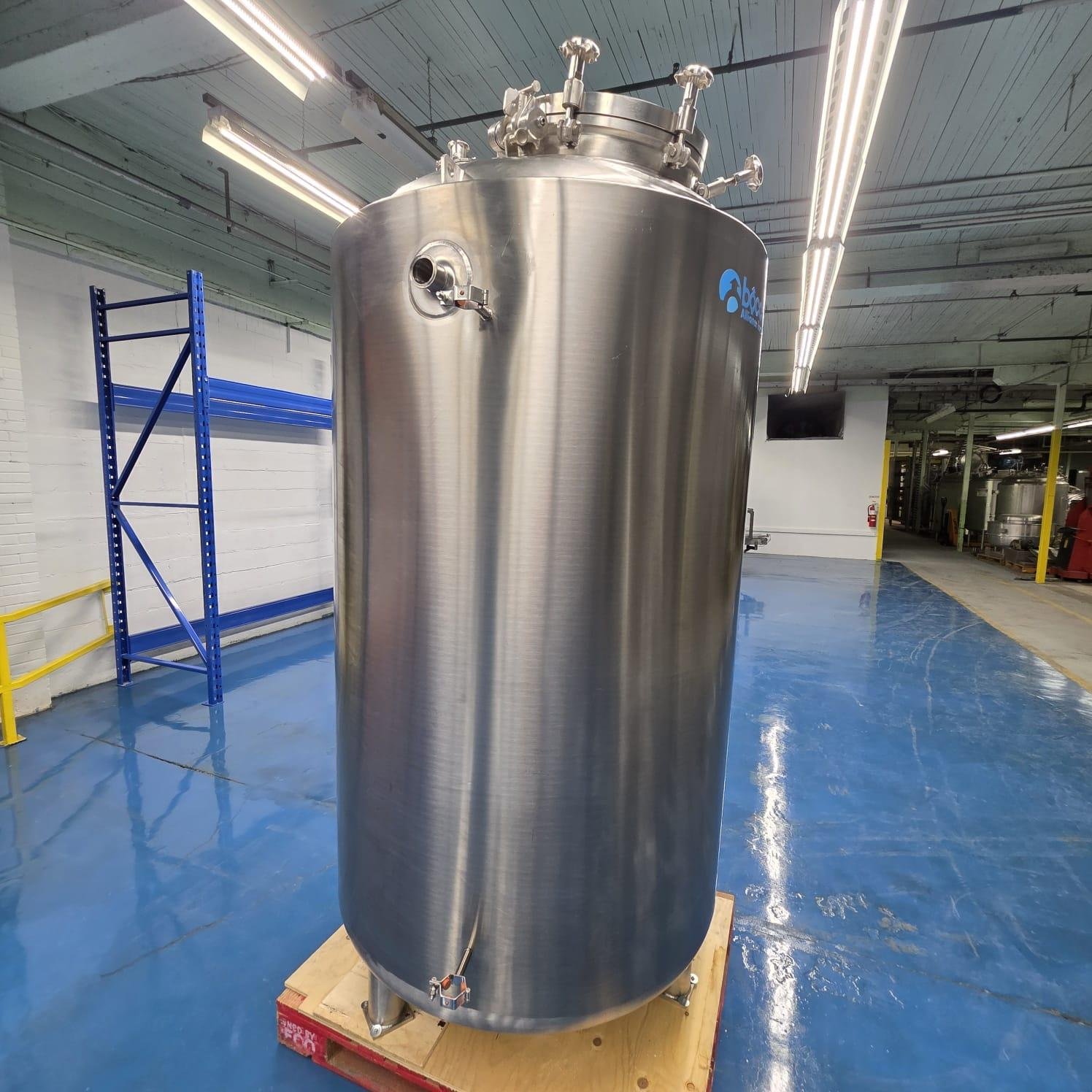

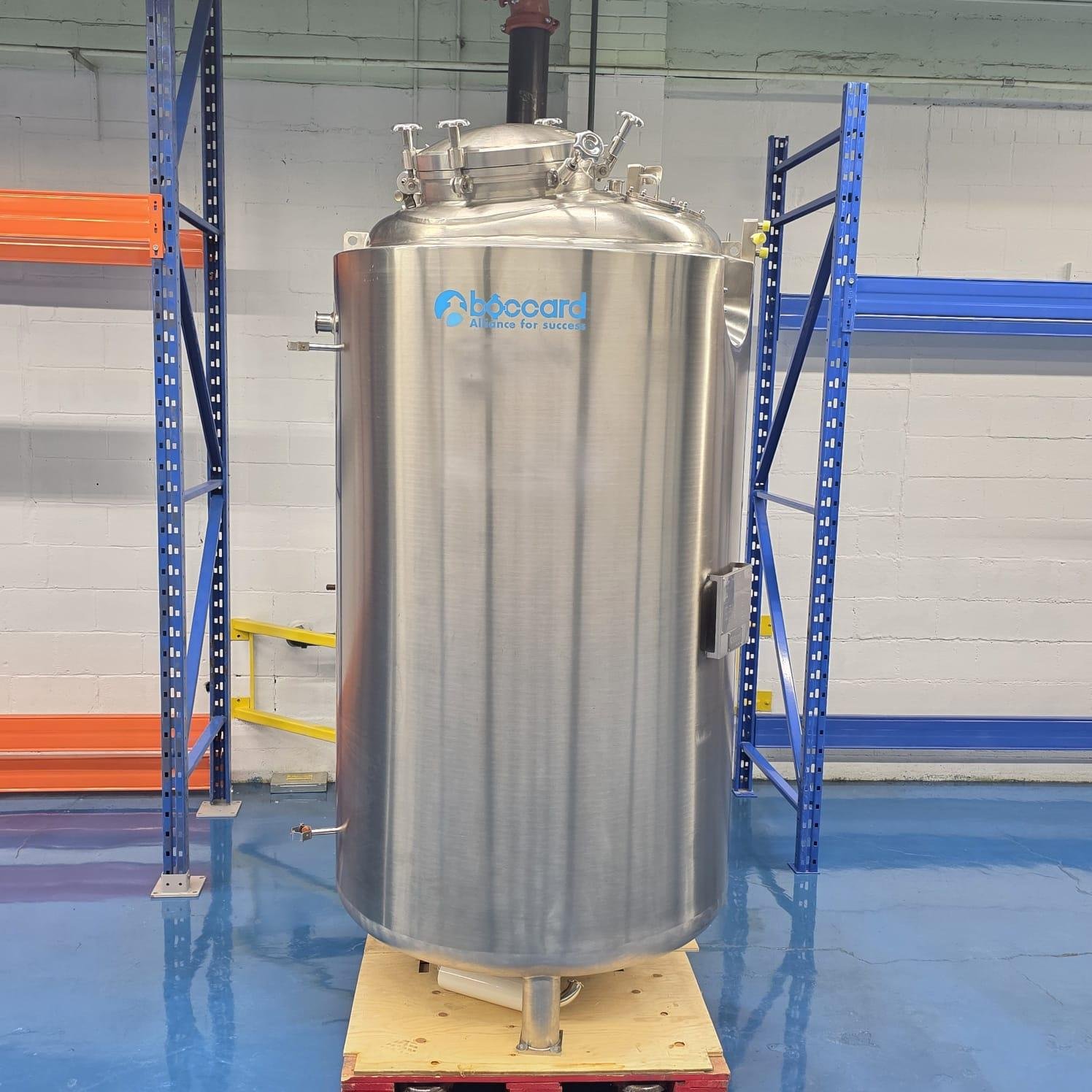

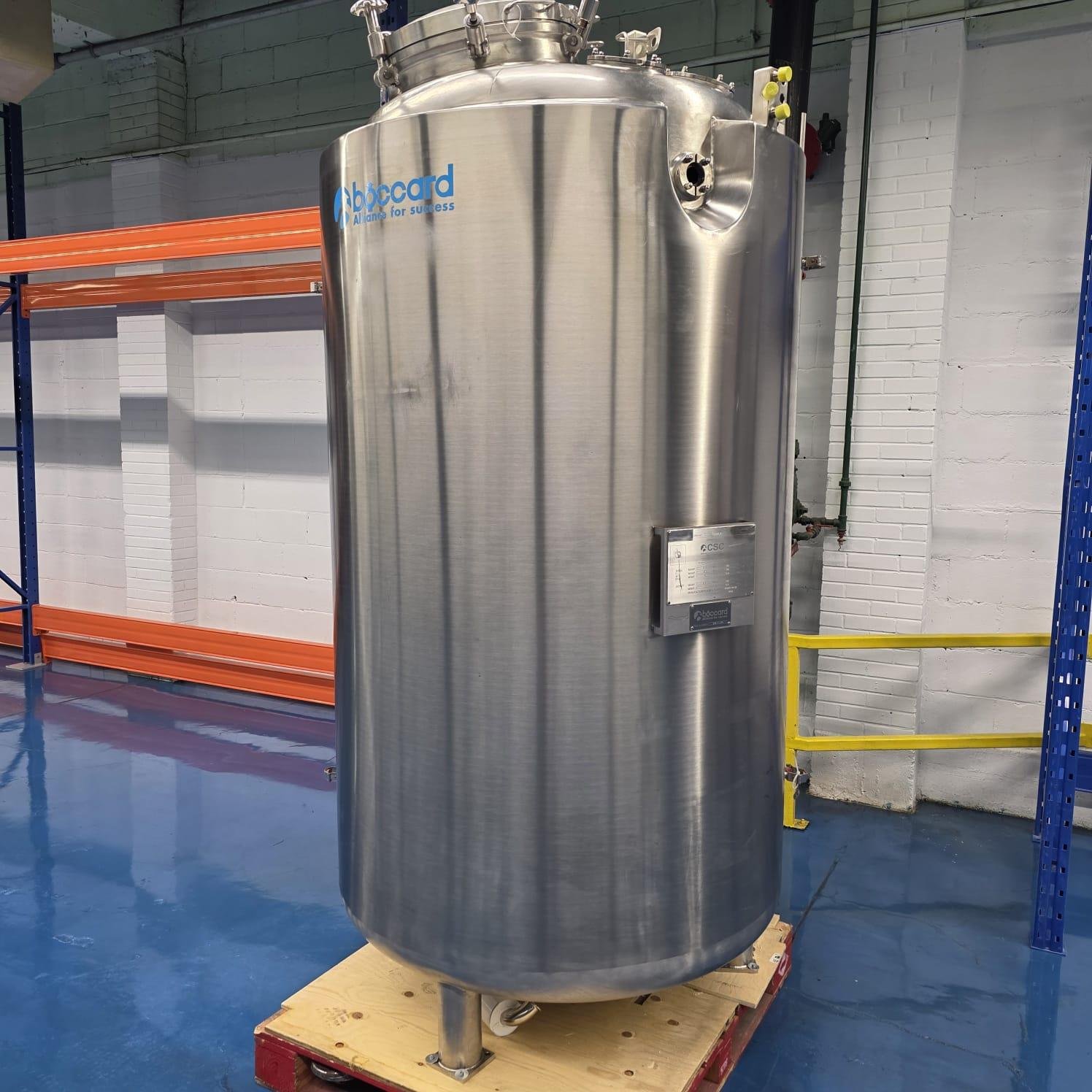

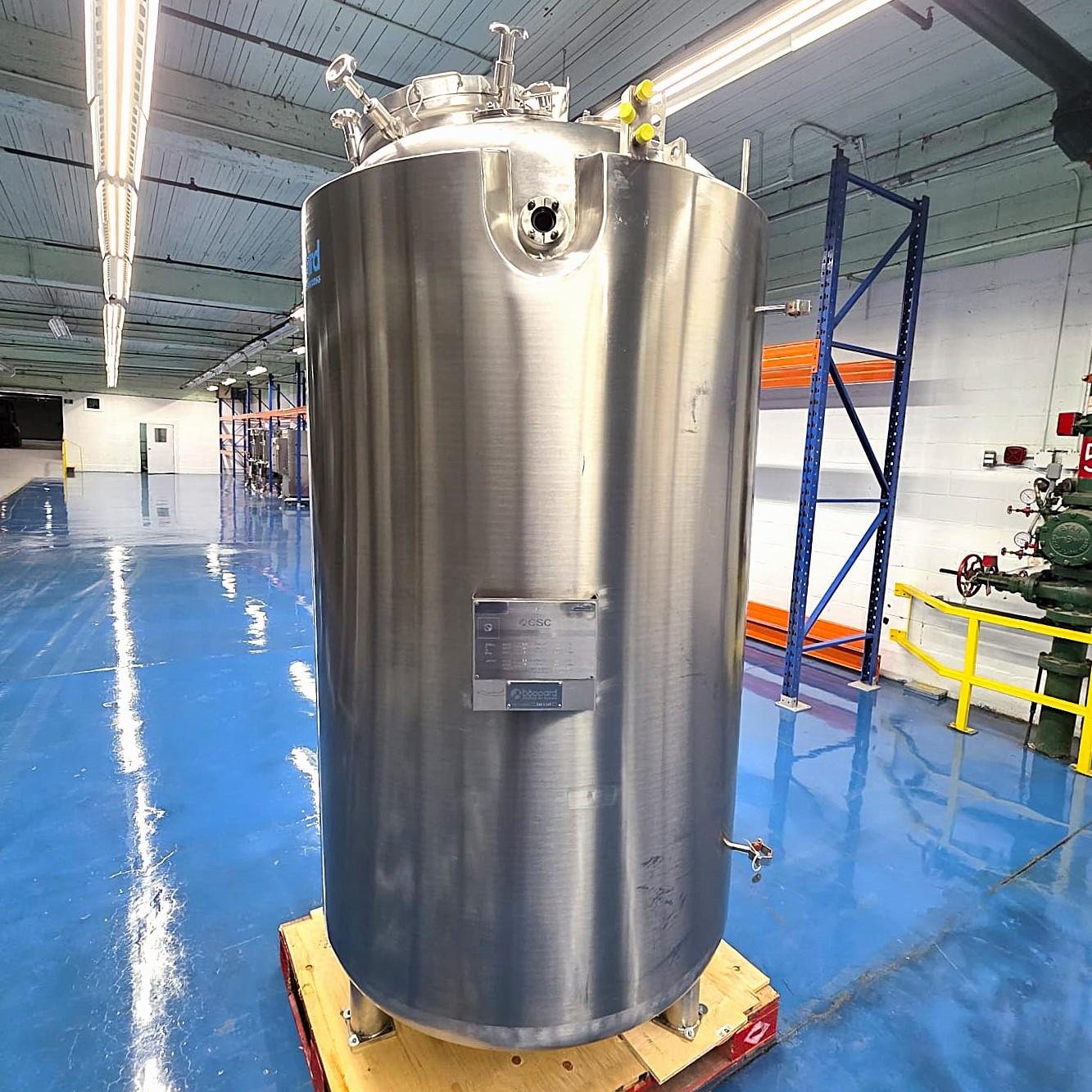

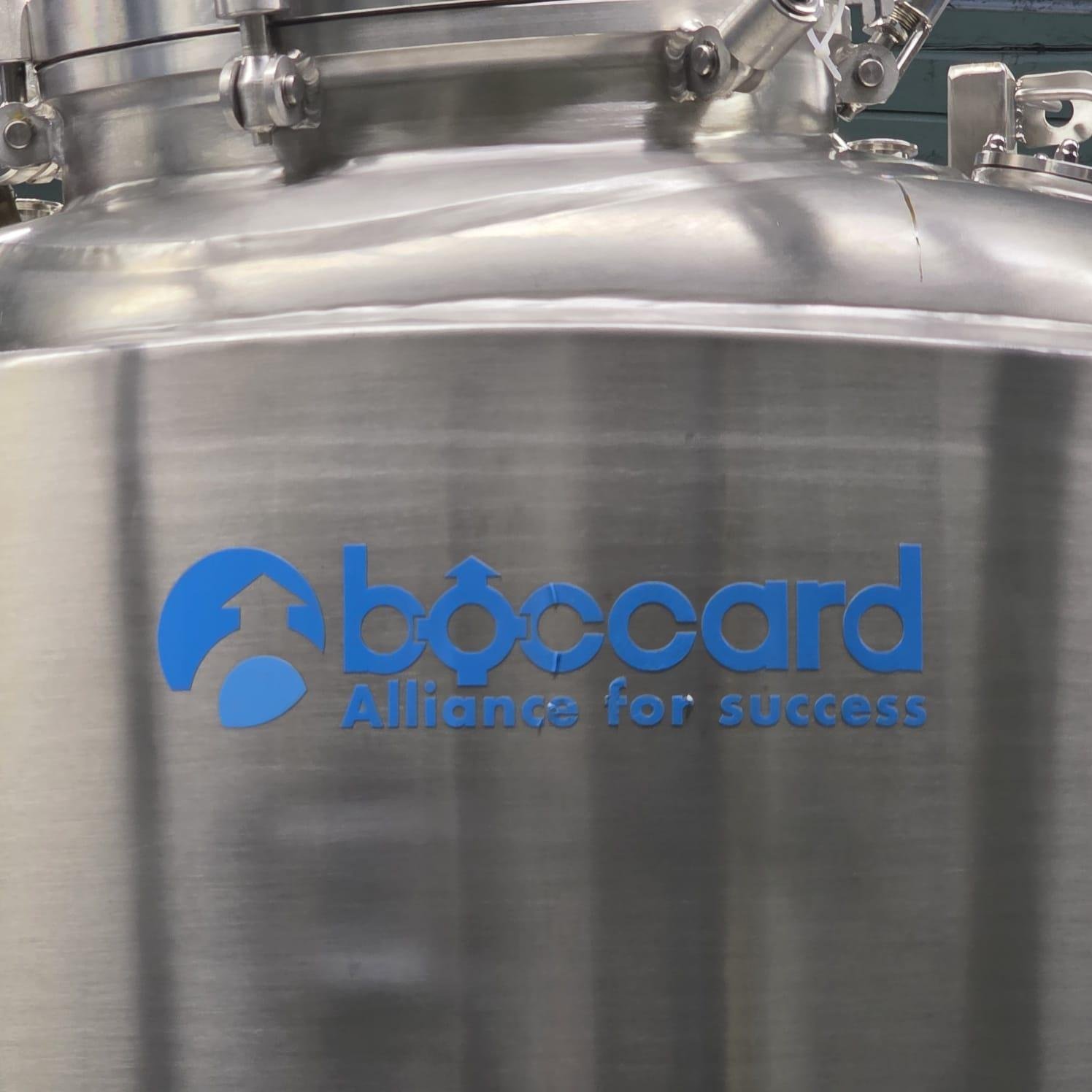

High-Precision Stainless Steel Process Vessel (or Reactor) manufactured by the French engineering firm Boccard.

This unit is engineered for high-hygiene industries such as pharmaceuticals, biotechnology, cosmetics, or food processing.

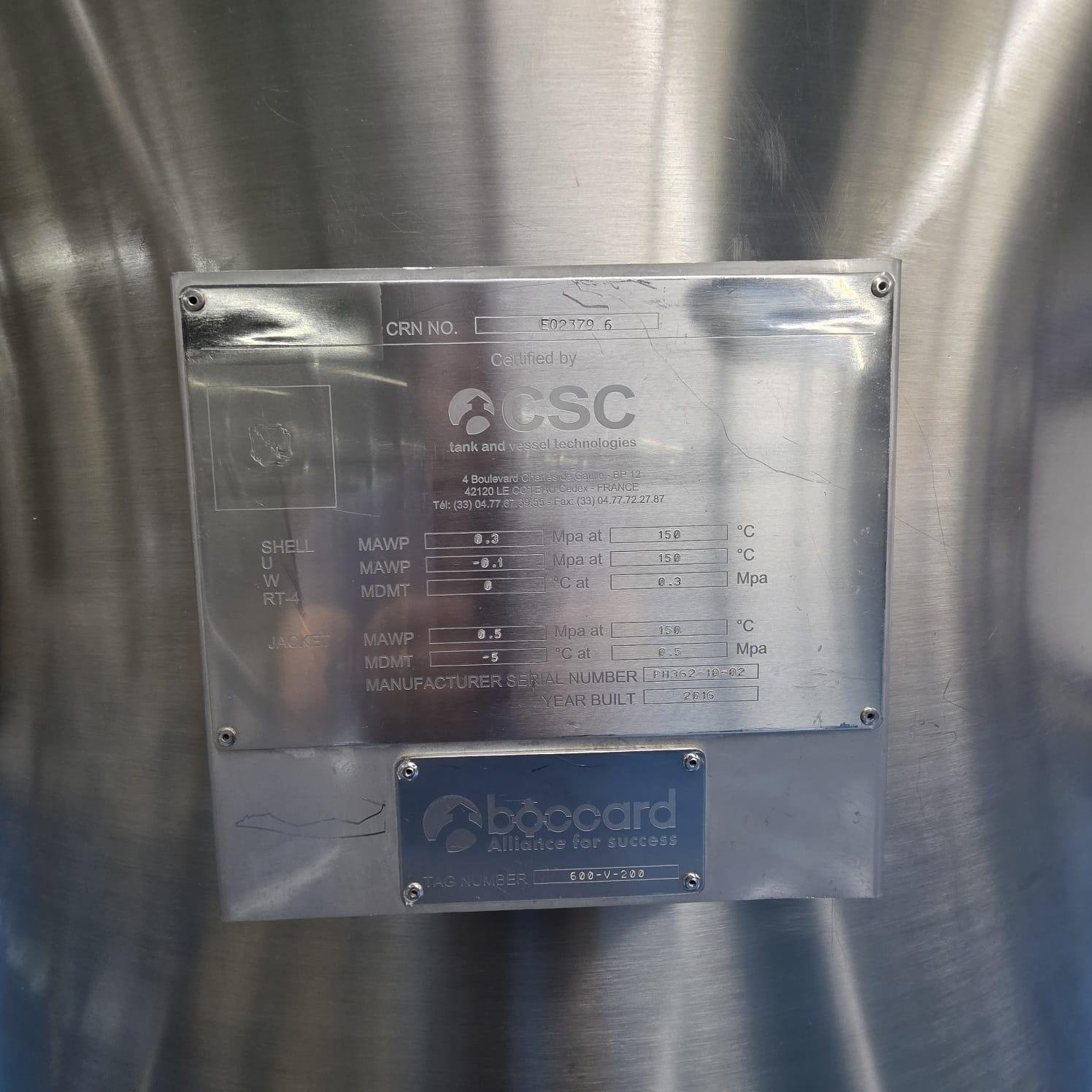

Rated Working Pressure:

SHELL:

MAWP: 0.3 MPA at 150C°

MAWP: - 0.1 MPA at 150C°

MDT:  0° C at 0.3 MPA

JACKET:

MAWP: 0.5 MPA at 150° C

MDMT: - 5° C at 0.5 MPA

Technical Highlights

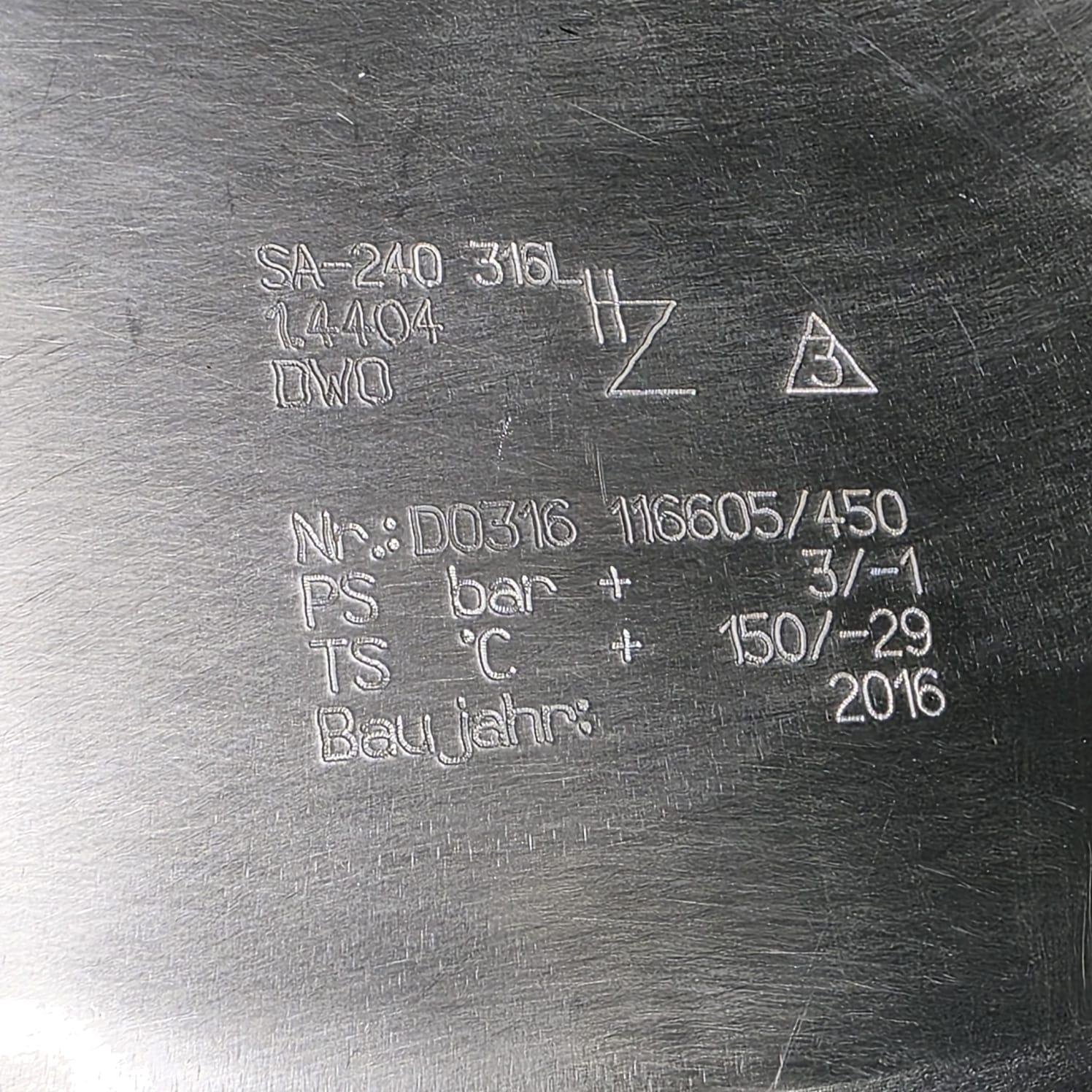

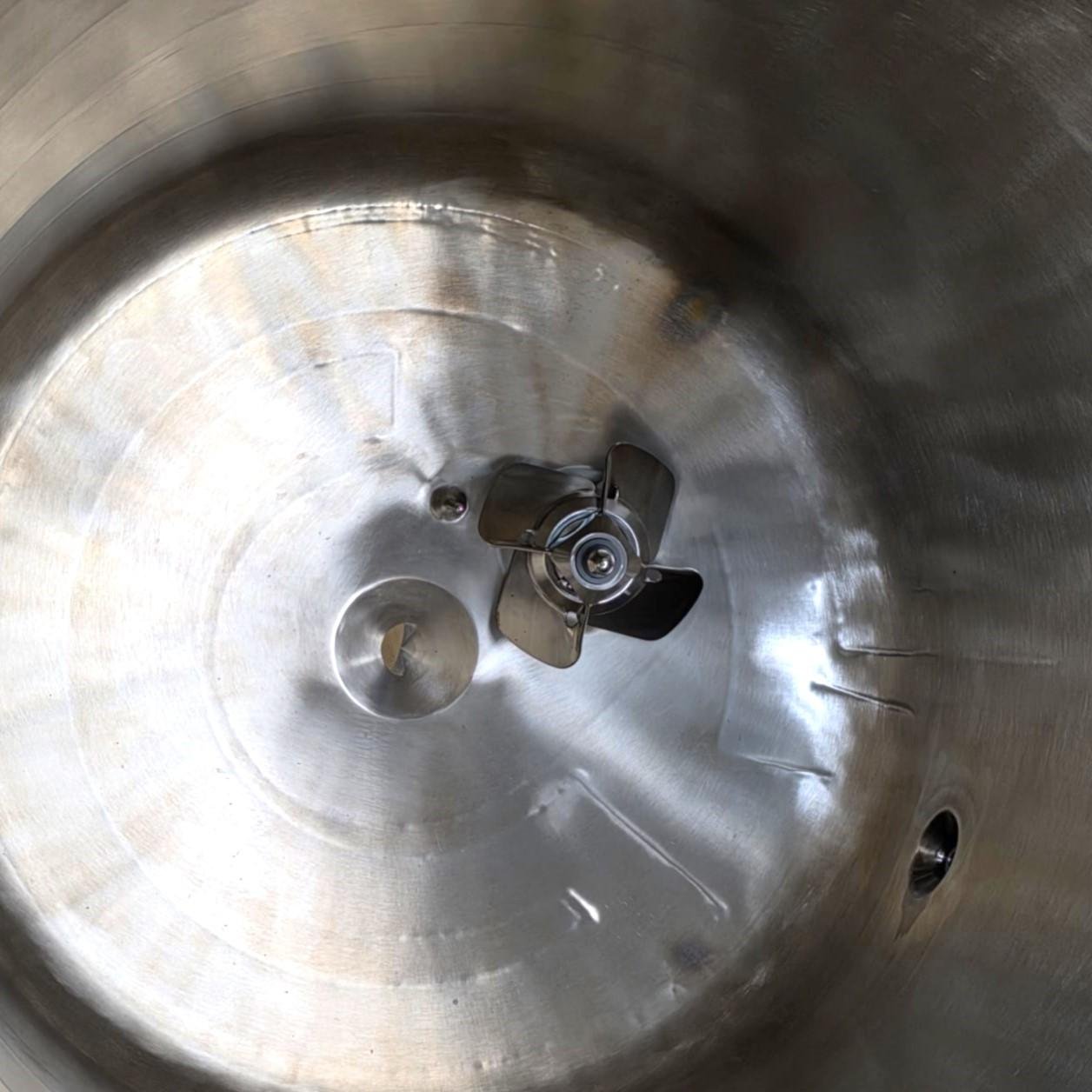

• Material: A high-grade stainless steel construction (likely 316L), inside mirror inside and satin finish outside, to ensure a sterile environment and prevent bacterial growth.

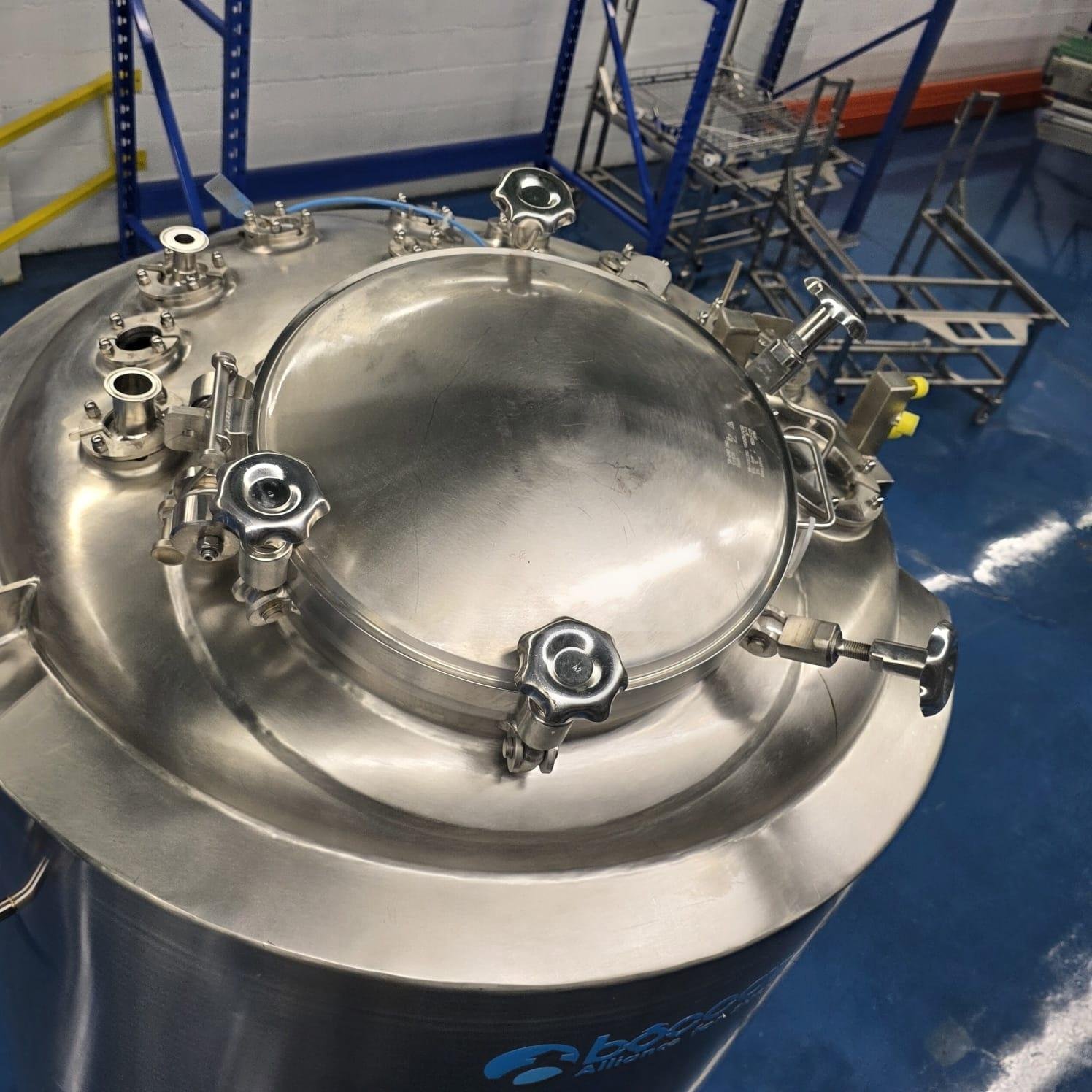

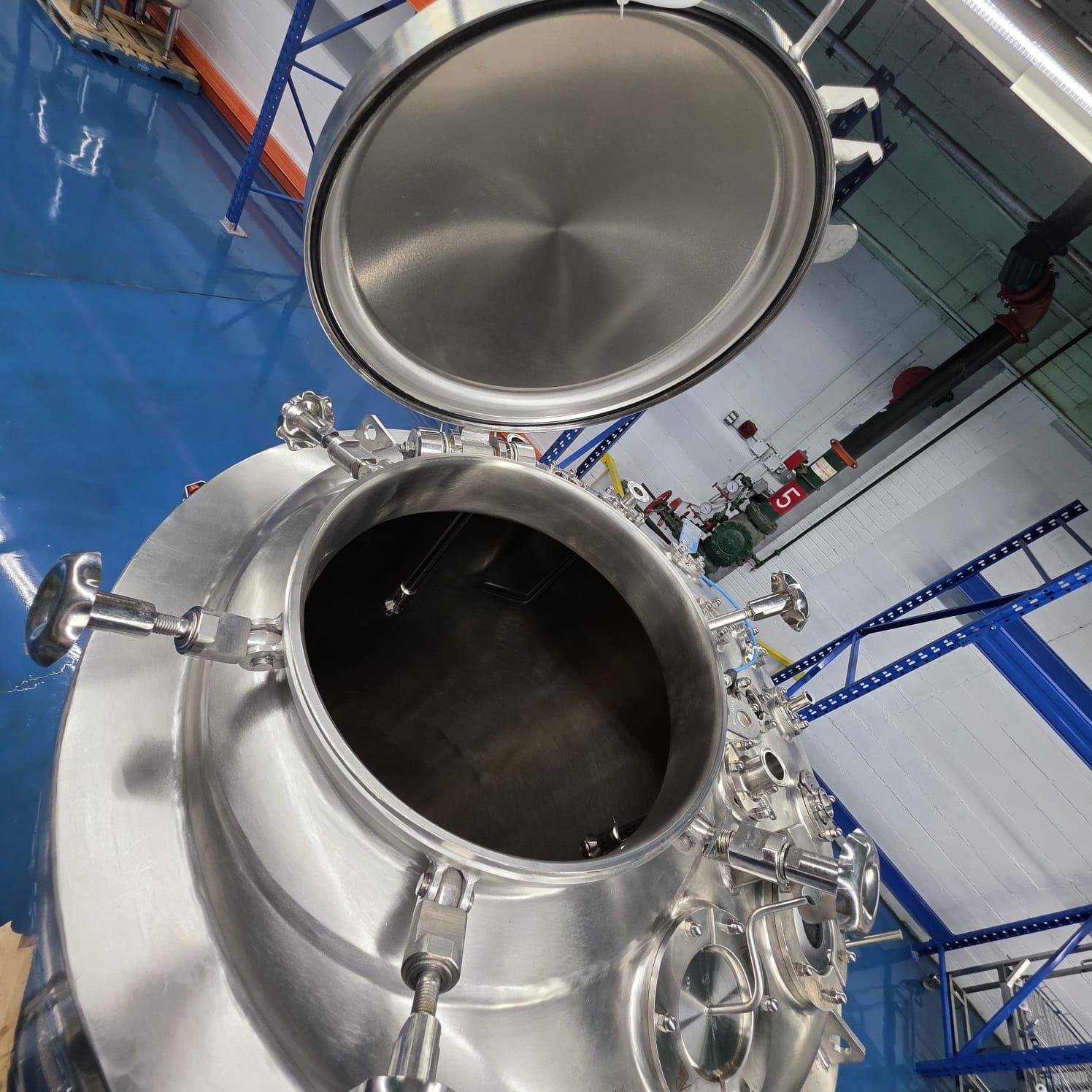

• Pressure Rated Top: The top includes a heavy-duty bolted manway of 19 inch diam. and safety relief valves, it can operate under significant pressure: 0.3MAWP -5MDMT or vacuum conditions.
• Jacketed Design: The main cylinder is jacketed, allowing for precise temperature control (heating or cooling) of the contents using steam, hot water, or glycol.

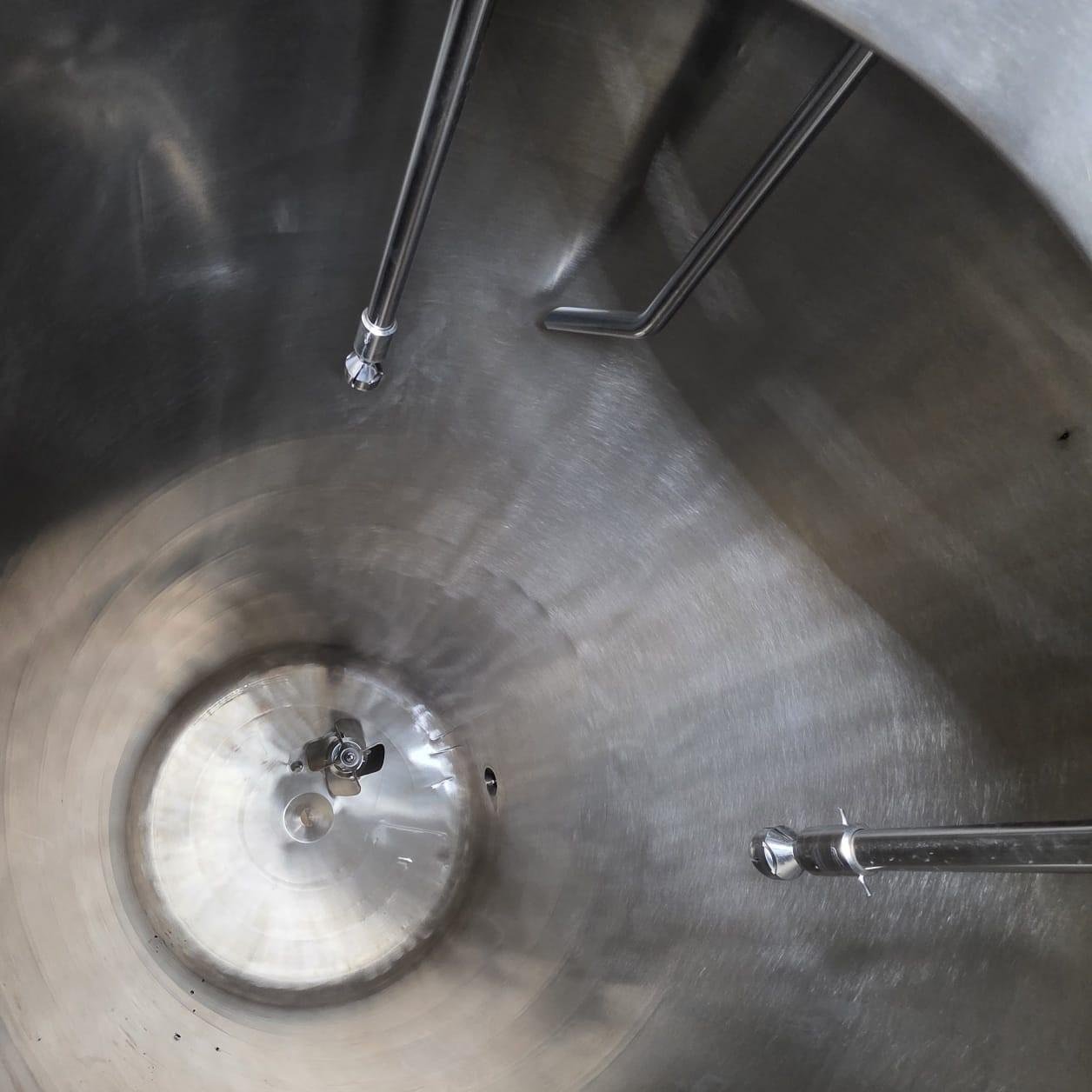

• Sanitary Fittings: It is equipped with multiple Tri-Clamp or flange ports on the dome for instrumentation (temperature/pressure probes), ingredient inlets, and CIP (Clean-In-Place) spray balls.

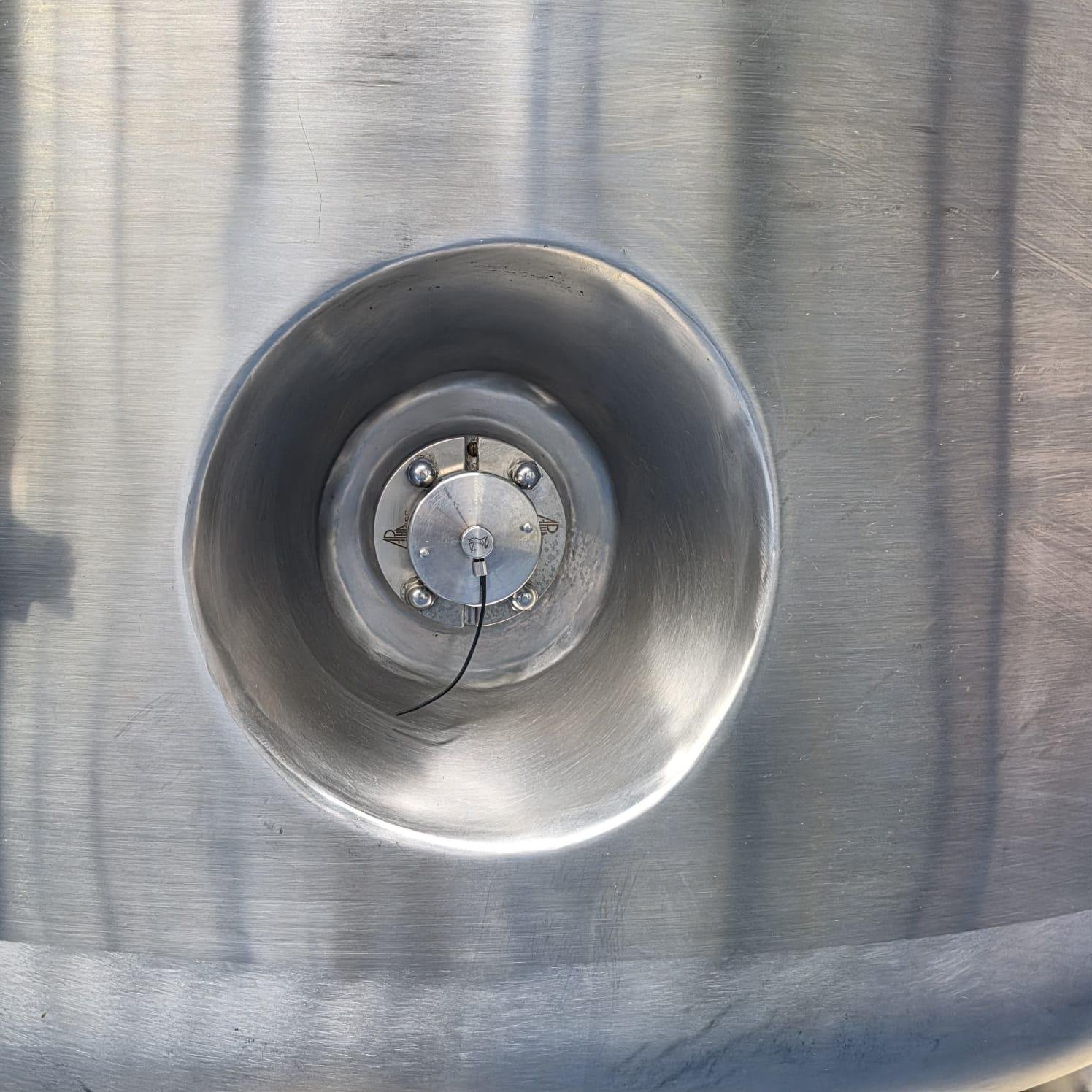

• Support Structure: It sits on stainless steel legs designed for cleanroom environments, allowing for easy floor sanitation. Comes with scale in evry leg.

Electrical Datta:

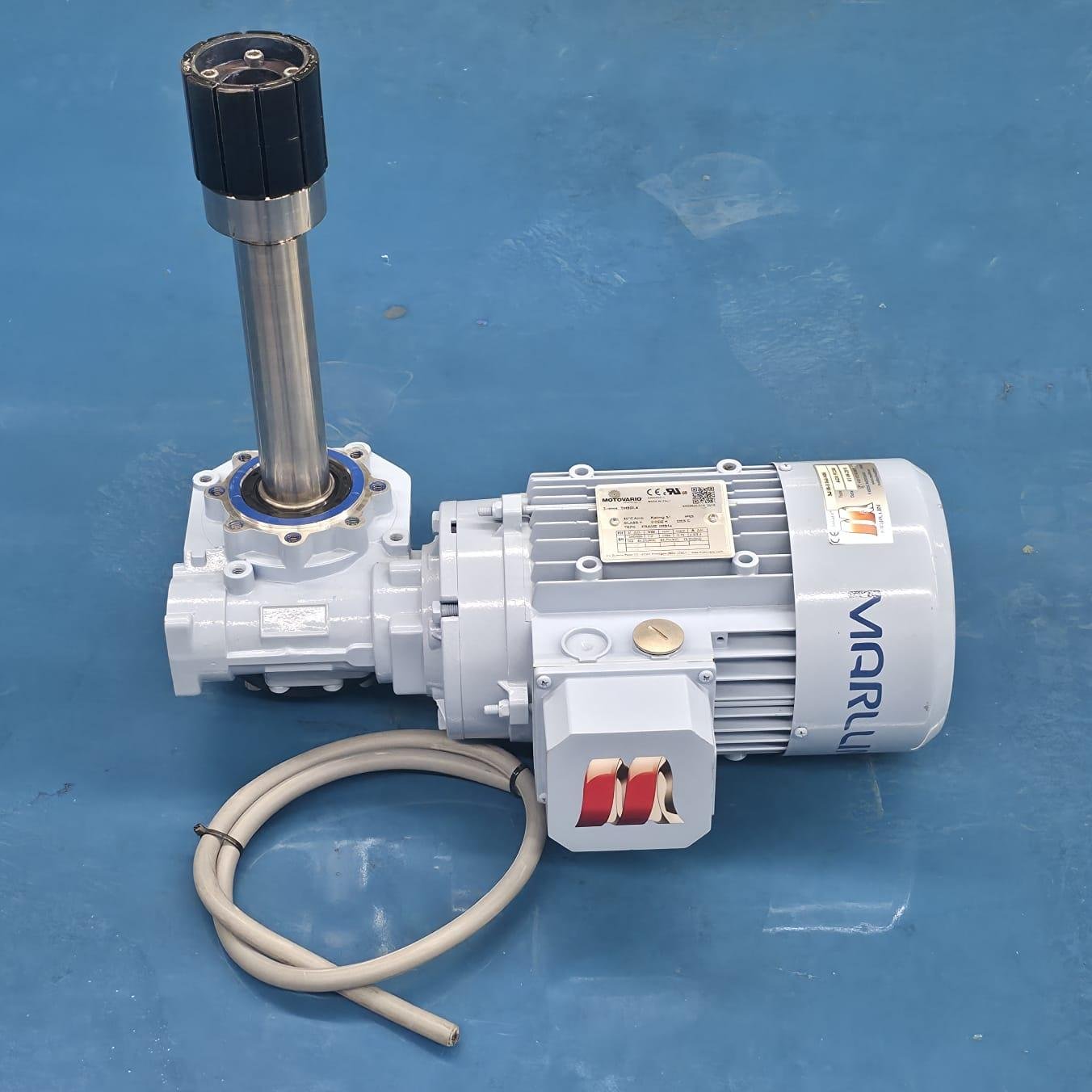

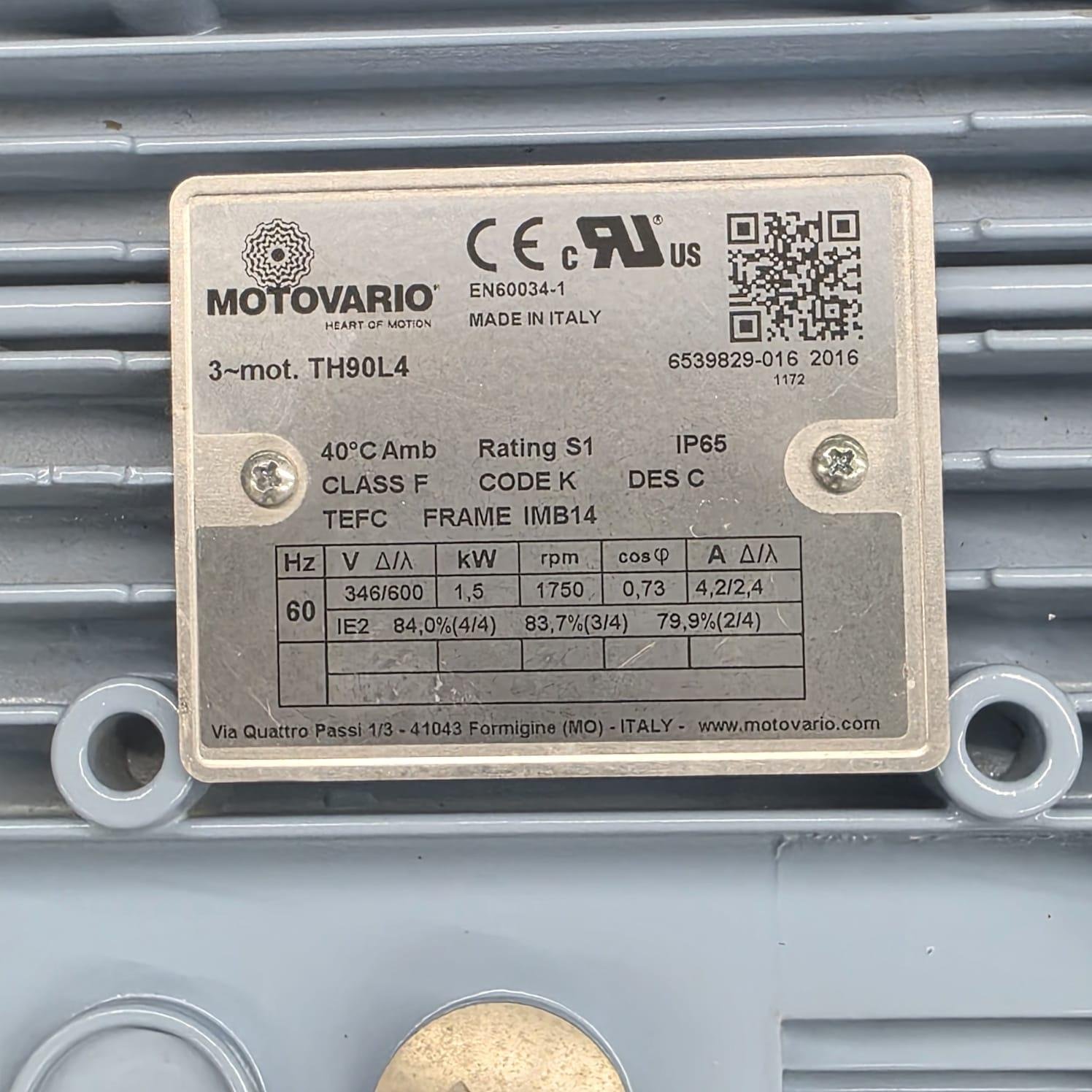

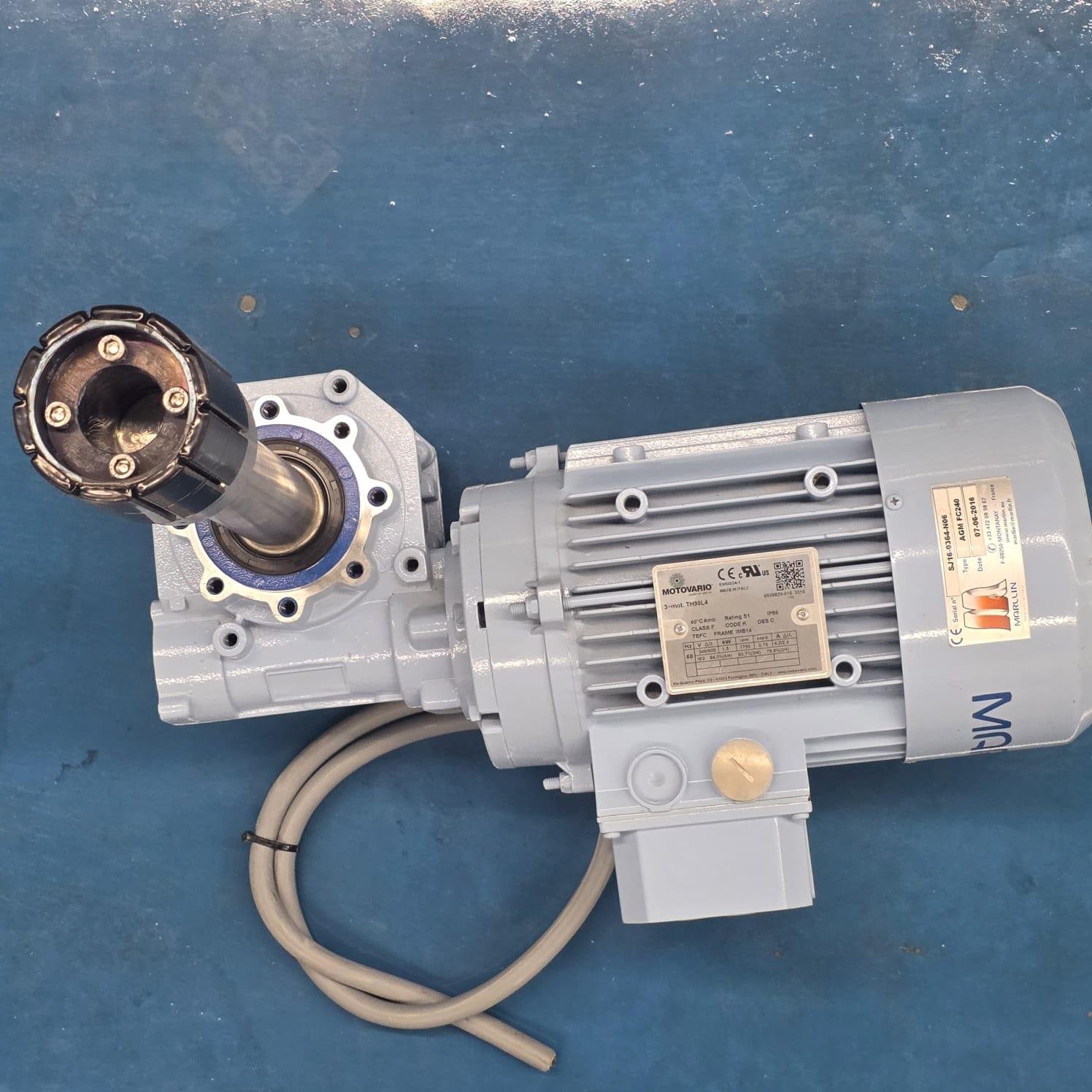

• Motovario Magnetic Motor 346/600 volts, 1750 rpm, 60hz.

Common Industrial Uses

• Mixing & Homogenization: Compounding sterile liquids, creams, or chemical solutions.
• Bioreactor / Fermentation: Used in biotech for cell culture or microbial fermentation.
• Sterile Storage: Holding high-purity ingredients before they are moved to a filling line.
