Valve Bag Auger Packer Taylor # 2025
General information
Equipment type
Accumulators/unscramblers
Manufacturer
Quantity
-1
Description

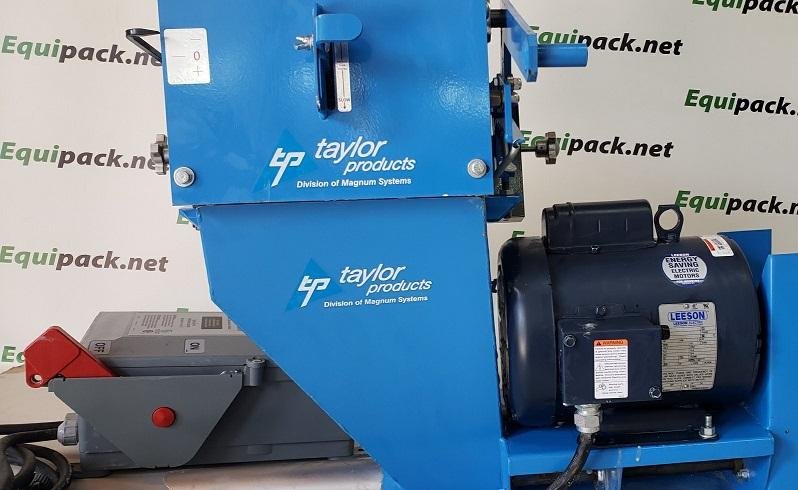

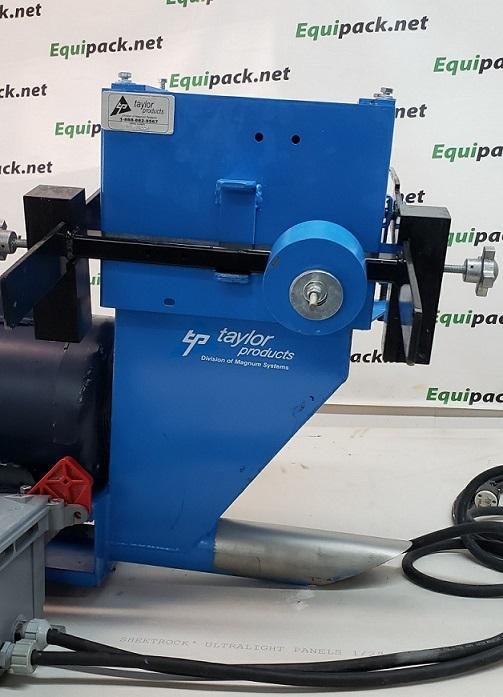

Valve Bag Auger Packer Taylor
15 lb. to 125 lb. bag capacity
Up to 3 bags per minute
Spout for 5.5” valve bags
Accuracy ± 0.4 lbs.
120VAC, Single-Phase, 60HZ
Scale beam
Carbon steel painted frame
Taylor GW Series is a manually operated, gross weigh, auger packing scale used to fill valve style bags. The GW Series is ideal for free flowing course powders and granular materials such as: seeds, resins, plastics, sand, rubber granules, fertilizers and abrasives.
Economical and easily portable, the GW Series is adaptable to your existing construction. The self-cleaning design makes product-changing easy, and avoids product-to-product contamination. The dual beam, double-poise scale is self-dampening, calibrated to one pound, with fine adjustment to achieve desired bag weight.
To operate: place the bag on spout, pull the gate handle to start fill. It shuts off automatically when the target weight is achieved. Then, press the foot lever to remove the bag.
