SPECIFICATIONS

Length: ..................... 73.73" (1873 mm)

Width: ...................... 45.94" (1167 mm)

Height: ...................... 49.25" (1251 mm)

Net Weight: .................... 770 lb (349 kg)

Motor: ......................... 2 HP (1.5 kW)

APPLICATIONS

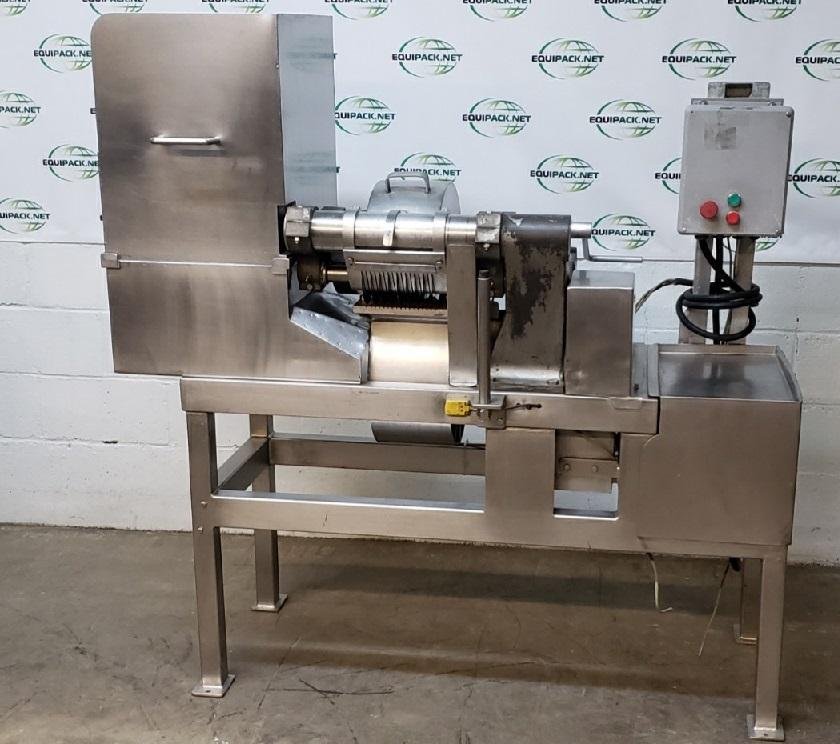

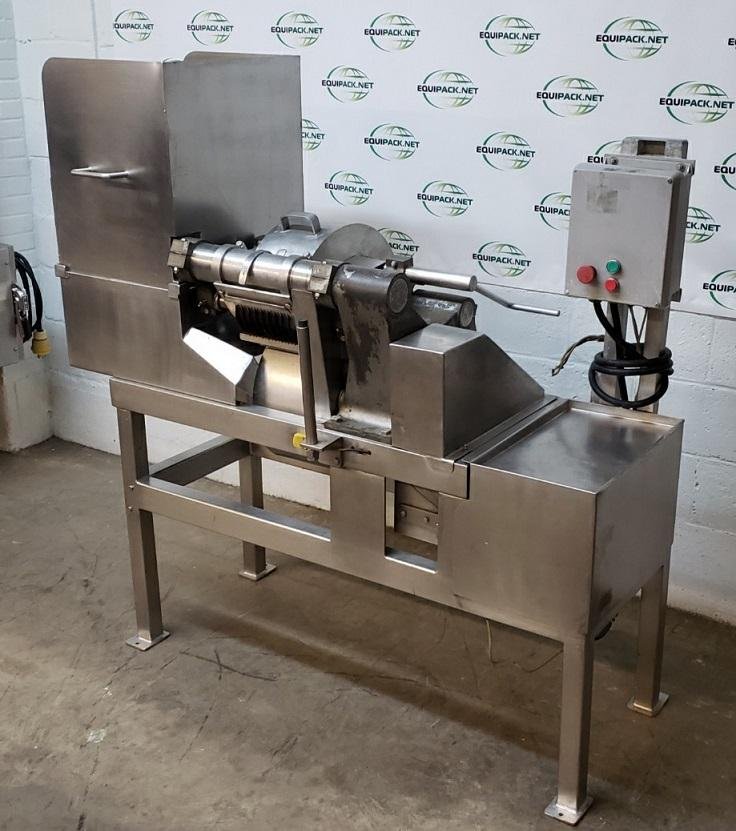

The Urschel Model H-A uniformly slices, strip cuts, and dices a variety

of products including peaches, pears, potatoes, lettuce, cucumbers, and

carrots. The machine features continuous operation for uninterrupted

production, and is designed for easy cleanup and maintenance.

Maximum infeed product entering the Model H-A should not exceed

5-1/2" (140 mm) in any dimension.

TYPES OF CUTS

SLICE THICKNESS: 1/8 to 1" (3.2 to 25 mm)

CROSSCUT KNIFE CUTS: 3/4" (19.1 mm), 7/8" (22.2 mm),

1" (25.4 mm), 1-1/8" (28.6 mm), 1-1/2" (38.1 mm), 1-3/4" (44.5

mm). Additional sizes available. Consult your local Urschel sales

representative.

CIRCULAR KNIFE CUTS: 1/8" (3.2 mm), 3/16" (4.8 mm), 1/4" (6.4

mm), 3/8" (9.5 mm), 1/2" (12.7 mm), 5/8" (15.9 mm), 3/4" (19.1 mm),

1" (25.4 mm), 1-1/8" (28.6 mm), 1-1/2" (38.1 mm), 2" (50.8 mm),

3" (76.2 mm).
